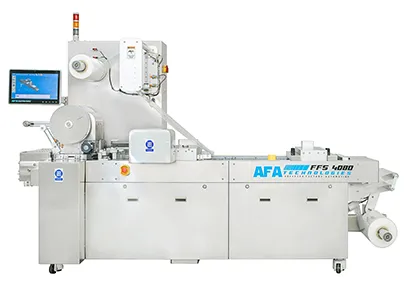

Thermo form fill seal Packaging Machine FFS 4080
Introduction
FFS 4080 Thermo-form fill seal packaging machine is designed for smaller packaging areas and higher volume running products. It is ideal for application with either flexible or semi-rigid film.
A 15” multi language display screen with removable safety covers design for clean ability. Package change-over's are possible and simple.
Features
- Compact, medium and high performance thermoforming machine depends on customers products.
- Machine designed by modular conception allowing easy integration to labeller, printer, metal detector, product dispenser and etc.
- Machine dimension, printing & loading area can customize to your requirements.
- Large touch screen with PLC system for easy operating.
- Material compatible with both flexible and rigid film.
- Package opening aids types: Serrated cut, easy-peel corner, tear slit, thumbhole, tear tab, lower web corner cut.
- Machine designed to be easily operated & maintained, hygiene and offering price-quality performance
- Optional labeler, Code Printer such as ink jet printer or thermal coder may be integrated
Technical Data
FFS SeriesFFS 4080
Top Packaging materialHeat sealable film, aluminum-laminated films, Tyvek or paper
Bottom Packaging materialThermo-formable, heat sealable films, flexible or rigid
Machine Length 4,500 to 8,000 mm
May be customized
Expected output Air-lift: 8 to 12 cycles per minute
(cycles per minute) Servo-lift: up to 16 cycles per minute
Film width400 ~ 460mm
Index LengthUp to 400 mm
Drawing DepthUp to 150 mm
Film roll Diameterup to 420 mm as standard unless other requested
Film roll core3” core diameter (secured by Air Shaft)
PLC Control system/ HMI PLC control panel, PC based touch-screen with Network accessibility to server
Compressed dried air (CDA) requirement
Minimum 6.0 bar, air consumption depends on “air-lift mechanism” or “servo-lift mechanism” configuration.
Servo-lift mechanism obviously reduces air consumption
Electrical SuppliesStandard 415V x 3 phase, 50Hz/60Hz, other voltages are to be specified at ordering
Vacuum consumption Usually comes with vacuum pump(s), unless otherwise specified
Chilled water supply Usually comes with chilled water cooler, unless otherwise specified
