Strapping Machines ROMC-6 SoniXs®

Strapping Machines ROMC-6 SoniXs®

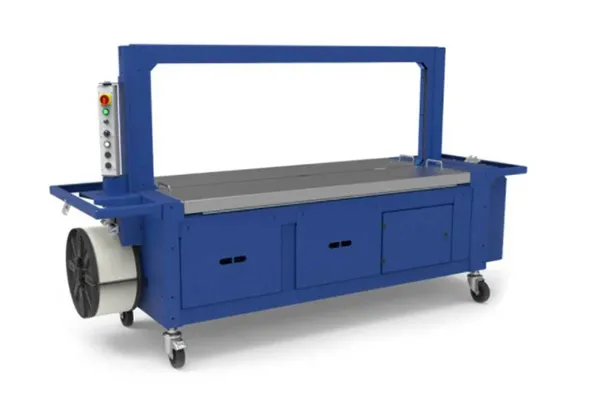

ROMC-6 SoniXs®

The ROMC-6 SoniXs® operator cycled machine features a wide arch and has a robust reinforced cabinet design. Mosca’s proprietary SoniXs® ultrasonic sealing technology creates a reliable, strong seal with increased cycle life, no warm up required, reduced cleaning and preventive maintenance.

Product Information

Production Rate: Up to 30 bundles per minuteTrack Size:

• 1250mm x 600mm (49.2″ x 23.5″)
• 1650mm x 600mm (65″ x 23.5″)
• 2200mm x 600mm (86.6″ x 23.5″)
• 2600mm x 600mm (102.4″ x 23.5″)

Other sizes available on request

Electrical: 110V – 220V 50/60 Hz, 0.5 kVATable: Gravity roller table topTable Height: Standard: 30.5” – 39.38” Risers required: 38.5” – 55.13” Outriggers required: 25.75” – 33.63”Strapping: SoniXs® sealer runs PP strap from 5-12mm and select PET straps. Optional heat sealer runs PP strap from 5-12mm.Strap Tension: Infinitely adjustable from 10 – 60 Lbs.Strap Seal: SoniXs® Ultrasonic seal with DC brushless direct drive motorSeal Location: Bottom center sealMachine Shipping Weight: Approx. 1350 Lbs.Casters: Two swivel-lock casters Two fixed casters

Versions and Options

• Photo Eye (for automatic cycle start)
• Light Tower
• Double pneumatic press
• Cycle complete indicator
• Heat Sealer (to replace SoniXs® sealer)
