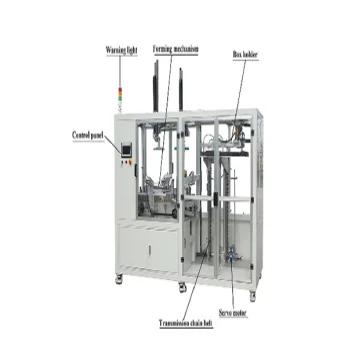

FULLY AUTOMATIC TRAY ERECTOR
Fully Automatic tray erector machine widely used in electronic products, e-commerce products, hardware, and other different industries.
ModelοΌ WEM104
NameοΌ Fully automatic Tray Erector
VoltageοΌ220V 50Hz/customized according to your voltage
PowerοΌ 2KWοΌ
SpeedοΌ 18-22 box/min(According to carton size, shape, material)
Box Material feeding HeightοΌ850mm/40KG
Requirement for boxοΌ300-450g/m2, Carton indentation is not less than 0.4mm, with pre folding effect
Air compressorοΌ20L/min
Net WeightοΌ 1400KG
Dimension οΌL2200XW1300XH1800mm
1. It’s our tray erector machine serious, the machine is fully automatic to pick up cardboard, pressing, folding, and forming it into the tray, suitable for corrugated paper, kraft paper, and other cardboard.
2. High degree of automation: PLC programmable control system, the human-machine interface shows the speed of carton loading, quantity, automatic alarm for lack of carton, no product not to open the carton, failure reason, and other parameters.
3. The transmission and friction parts are strictly following the standard implementation, with less wear and tear in the later stage, and reducing the replacement of accessories.
4. Moulds, replace the box with different specifications, only need to change the mold, save time and effort.
5. Adjustment buttons, with fine-scale, easy adjustment to change to another size box
6. Box storage slot,850mm height, 40kg load capacity, one discharge lasting operation, improve efficiency
7. Forming mechanism, only three stations are needed to form the box, simple, efficient, and easy to maintain
8. Universal Wheel, equipped with four universal wheels, easy to move after unlocking, convenient for production layout
9. Choice of hotmelt adhesive or lock form tray styles.
10. Options
- A visual inspection Machine will detect the defective goods before cartoning.
Cartoning Machine will fully automatically fill the several cartons into cartons, sealing them with tape or straps.
- End weigher checker can detect the wrong weight carton.
- Ink printer or label stick machine, stick the goods information on the carton or carton.
- Robot Palletizer The palletizing robot will stack the cartons according to your requirements.
Filling the instruction book card into a carton
- Installation Service
1. we provide videos and an instruction manual to show the process of installation.
2. we provide training for installation for free in our factory.
3. we can send a technician to the buyer’s factory to install the machine and provide a training course.
1. One-year warranty and free lifetime technique support.
2. Free spare parts would be supplied if the machine has broken within the warranty period.
3. After the warranty period, the spare parts for replacement are offered based on a certain charge.
