ITALDIBIPACK S.P.A

Skinpack Wrapping Machines

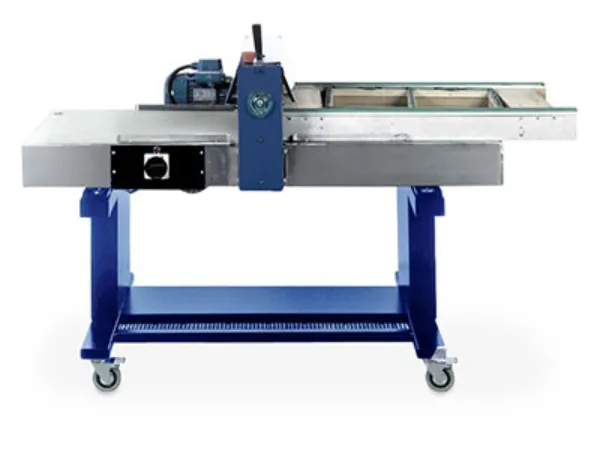

HORIZONTAL ROLLER-CUTTING MACHINES FOR CUTTING SKIN-PACKED PRODUCTS

When several objects are wrapped up during the same cycle, the MINI and MAXICUT roller-cutting machines are ideal because they separate the single items one from each other without using a manual cutter and it is possible to make buttonholes.

SPECIFICATIONS MINI-CUT 400

• Power supply 240 V – 1 Ph
• Power required 0,55 KW
• Overall machine dimensions L x W x H: 1400 x 800 x 500 mm
• Working plate height (on stand): 700 mm
• Die cutting device dimensions: 350 x 500 mm
• Machine weight: 90 kg
• Die cutting device height: 75 mm fixed
• Translatory motion speed: 0,16 m/sec

Notes: Technical data subject to variations without prior notice

Output depends on the operator and the type of the package
