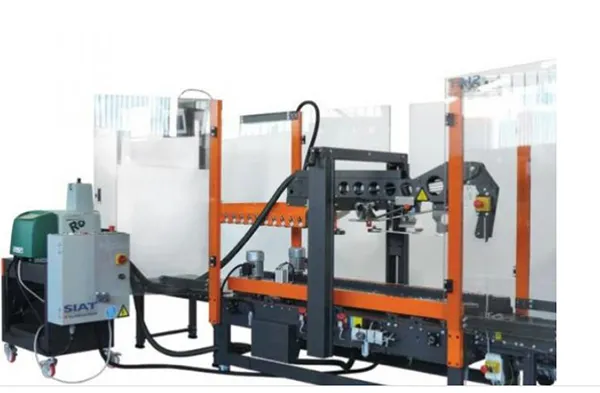

HM11 RANGE

HM11 RANGE

Automatic hot melt carton sealer

SIAT produces also a range of Hot Melt Case Sealers. It is designed to seal with Hot Melt glue the top of boxes of the same size.

The HM11 Range is an automatic case sealer with side drive belts and manual adjustment. It is designed to seal with Hot Melt glue the top and bottom of boxes of the same size.
The box, coming from a filling station with the bottom flaps sealed, is taken away by drive belts toward the machine where injectors dispense 4 strips of Hot Melt glue. A system of flap compression rollers provides the proper pressure on top and bottom flaps of boxes. The Hot Melt case sealer doesn’t require the presence of an operator except for the glue adjustments and feeding. It is equipped with safety panels to prevent an operator from coming in contact with moving or hot parts.

• Automatic top-flaps-folder device
• 12 different application programs
• Ready for integration into automatic lines
• Easy to use
• The top & bottom glue applicator dispenses the glue on the top and bottom flaps while boxes pass through the machine before top flaps folding
• ROBATECH® hot-melt glue applicator on external carriage equipped with 5 Kgs tank, tube and glue dispenser
• The glue dispenser adjusts glue temperature and volume
