Modern Manufacturing Services

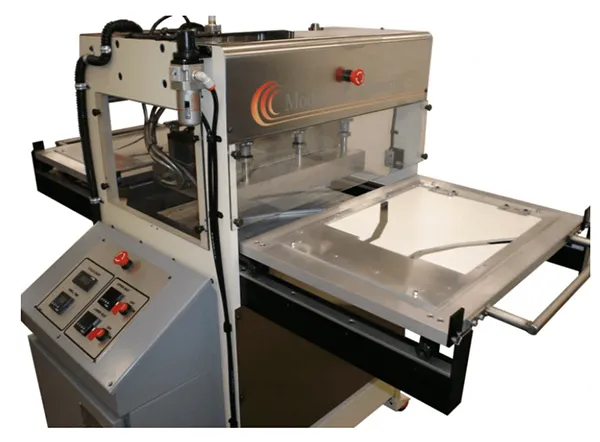

PROCESS TRAY SEALERS

DESCRIPTION

• Secondary pouch heat sealing
• Lid stock sealing
• Medical device packaging
• Optional validated control package

SPECIFICATIONS

Machine Dimensions

Height: 60" (1524 MM), Width: 46" (1168 MM), Length: 74" (1880 MM)

Heat Seal Overall

Height: 14" (355 MM), Width: 20" (508 MM)

Max Tray Fixture Area

Height: 14" (355 MM), Width: 20" (508 MM)

Power Requirements

220 VAC, 25 AMP upper heat only, 50 AMP upper and lower heat

Air Requirements

90 PSI Maintained Air Supply
