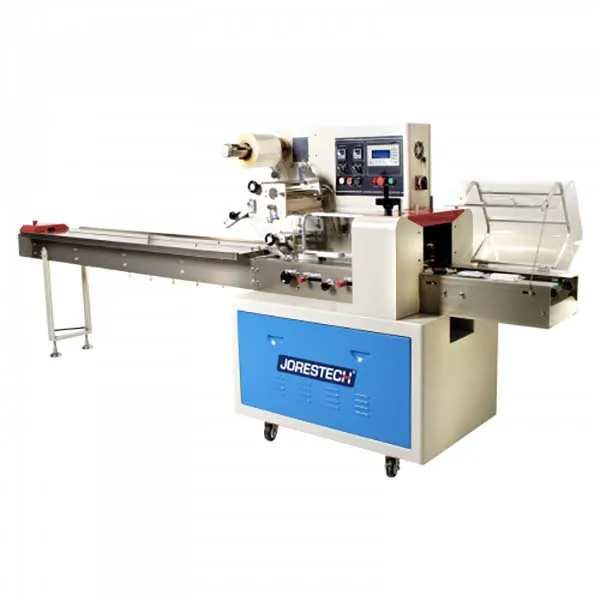

Automatic Horizontal Flow Wrapper Packaging Machine - 250 mm - (Model - E-FW-250) by JORESTECH®
Automatic Horizontal Flow Wrapper Packaging Machine - 250 mm - (Model - E-FW-250) by JORESTECH®
JORESTECH® Flowpack machines can be used for a wide range of products and applications. During the horizontal wrapping process, the product is placed onto the machine’s flat chain conveyor where it travels horizontally to the sealing head. A heat-sealable film is then wrapped around the product, sealed and cut. All of these processes are automatically completed by the same machine. The result is a neatly fitted, flexible center seal pillow pack with a strong and consistent horizontal back seal and top/bottom vertical seals. Flow wrapping is commonly used for delicate products, single-serve goods, products in trays, and much more. This includes energy bars, sponges, ice cream on a stick, cleaning wipes, pastries, desserts, napkins, pre-wrapped plastic cutlery, flea collars, coffee filters, etc.
Built to last, it features stainless-steel surfaces to allow for quick and easy sanitation. Easy and user-friendly operation through the use of a menu-based touch panel display HMI. Push fingers allow this machine to know when to produce a cut, eliminating the need for eye marks on packaging, and producing consistent package lengths with great precision every time. The automation features and versatility of the JORESTECH® FW-250 Horizontal flow Wrapper are a great asset to most flow-packaging lines by increasing production speeds; creating strong, uniform, professional-looking packages, and reducing errors and waste.
Features:
- ADVANCED AND INTUITIVE: Capable of handling difficult products at high speed
- USER-FRIENDLY SOFTWARE: For ease of navigation and machine operations
- AUTOMATIC BAG LENGTH DETECTION: If packaging film has eye marks, machine automatically detects bag length during operation without the need for a manual setup
- LOWER PRODUCTION COSTS: Reduces labor costs, product damage, material inventories, and package costs
- Flat chain conveyor slightly elevates product as it is carried to the cutting head, decreasing contact points with the machine and increasing sanitation
- Functions effectively without the need for eye marks on product packaging
- Sealing temperature is controlled independently, suitable for packaging of various materials
- Wheels with breaking casters for ease of mobility
Machine Specifications:
- Packing Speed: 40-110 bag/min
- Bag Size Range: (L) 65-190 mm / 2.5-7.5 in (W) 30-110 mm / 1.2-4.3 in
- Product Height: max. 40mm / 1.6 in
- Packing Film Width: max. 250 mm / 9.8 in
- Packaging Materials: Printed OPP/CPP, PT/PE, KOP/CPP, ALU-FOIL
- Electricity: 220VAC / 50-60Hz, 1Ph, 12A max
- Heating Power: 900 W
- Motor Power: 1000 W
- Total Power: 2040 W
- Machine Weight: 1764lbs (800 kg)
- Machine Dimensions: 148 in (3770 mm) L x 26 in (670 mm) W x 57 in (1450 mm) H
