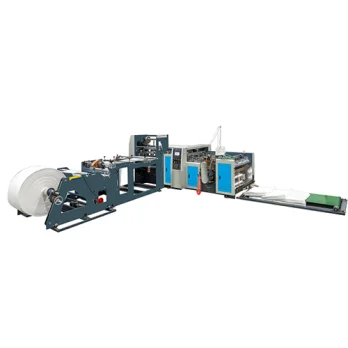

Automatic Cutting and Sewing Machine

1. Auto. heat cutting and bottom sewing for the printed bag and blank bag, which can save the labor.

2. Touch screen, PLC and stepping motor to control the length of bag precisely.

3. The mouth of the bag is easy open after heat cutting.

4. Auto. counting and collecting in fixed quantity.

5. Electric feeding of fabric roll by hoist, convenient operation.

Main Technical Parameters:

Model No.	YF-850
Max. Diameter of Unwinding Roll (mm)	1200
Max. Cutting Width (mm)	750
Cutting Length (mm)	600-1200
Cutting Precision (mm)	±1
Folding Width (mm)	20-30
Production Capacity (pcs/min)	20-40
Gross Power (kw)	6
Installing Dimensions (L×W) (mm)	6000x6000x1500
Approx. Weight (kg)	1800
Remarks	Heat cutting and cold cutting

Model No.	YF-850C
Max. Diameter of Unwinding Roll (mm)	1200
Max. Cutting Width (mm)	750
Cutting Length (mm)	600-1200
Cutting Precision (mm)	±1
Folding Width (mm)	20-30
Production Capacity (pcs/min)	25-60
Gross Power (kw)	6
Installing Dimensions (L×W) (mm)	6000x6000x1500
Approx. Weight (kg)	1800
Remarks	Cold-cutting
