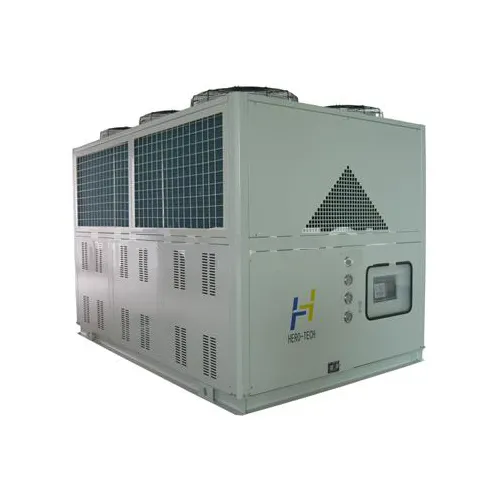

Industrial Air Cooled Chiller 62kw To 134kw

Industrial Air Cooled Chiller 62kw To 134kw

Features

  • CE standard design,

  • high COP:2.88 to3.0,

  • R407c, friendly type refrigerant,

  • Copeland or Danfoss world famous hermetic scroll compressor,

  • Stainless steel pump,

  • Stainless steel built-in tank,

  • Door mounted disconnect switch,

  • Original Schneider electrical components,

  • Standard operating and safety controls

  • Ventilated control cabinet

  • Indoor operation

  • Water-proof electrical chamber

  • Removable panels for easy service access

  • Tank level alarm/switch, High and Low pressure switch, Inner thermostat for compressor motor, three phase over current protection, compressor overload protection, fan overload protection(air cooled), pump overload protection

  • Low noise and high efficiency finned tube condenser

Specifications

Model

 HTI-25AD

 HTI-30AD

 HTI-40AD

 HTI-50AD

 nominal cooling capacity

 kw

 62.1

 78.3

 106.34

 134.3

 power source



 3PH  380V-415V  50HZ

 refrigerant

  type



 R407C,R410A



 control



 Thermostatic expansion valve

 compressor

 type



                                                   hermetic scroll



 power

  kw

 10.8*2

13.62*2

 18.78*2

 23.6*2

 condenser

 type



 finned copper tube + low noise outer rotor fan

 evaporator

 type



 Copper coil built-in storage tank



 coolant flow

 m3/h

  10.06

  13.6

 17.75

  21.9



 tank  volume

 liter

 350

  420

 580

 580



 inlet and outlet

 inch

 2-1/2

  2-1/2

 3

  3

 dimension

 length

 mm

 2150

 2150

 2650

 2200



 width

 mm

 1050

 1050

 1200

 1780



 height

 mm

 2100

 2100

 2200

 2200

  weight

 kg

 810

 890

 1112

 1320
