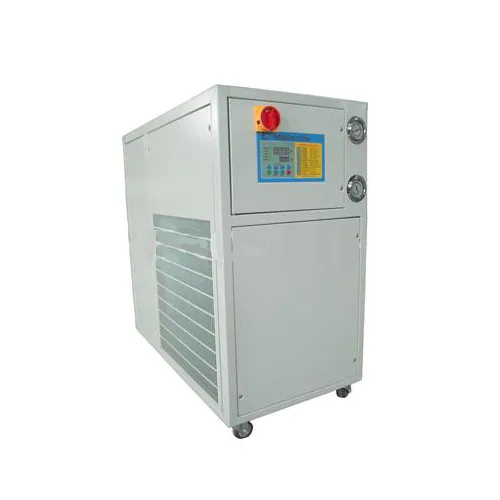

Packaged Oil Chiller (HTO A) 1KW TO 25KW

Features

Adopt European or Japanese brand compressor, stable performance, high efficiency and low noise.

HTOI series immersion type oil chiller equipped copper coil type evaporator, without tank; HTO series oil chiller equipped with copper coil-in-tank type evaporator, and shell and tube type evaporator for option.

Imported oil pump for high temperature fluid, high pressure, large flow rate and stable.

Full protection for system, including high/low pressure, high discharge temperature, compressor motor overheat, over current, anti-freezing, flow switch and quick break switch.

Specifications

model			HTO-1/2A	HTO-1A	HTO-1.5A	HTO-2A	HTO-3A	HTO-4A	HT0-5A	HTO-6A	HTO-8AD	HTO-10AD
nominal cooling capacity		kw	1.5	2.5	3.2	5.0	7.5	10	12.5	114.5	20	25
power consumption		Kw	0.7	1.11	1.45	1.85	4	5.5	12.5	14.5	9.9	13. 1
full load		Amp	4.2	6.7	8.7	11.2	9.7	13.3	15.5	18.4	24	32
power source			1PH 220V 50HZ				3PH 380V/ 50HZ
oil temperature range		C	10 to 45
refrigerant	type		R22
	control		capillary (thermostatic expansion valve)
compressor	type		hermetic rotary (hermetic scroll)
	power	kw	0.58	0.96	1.3	1.7	2.7	3.6	4.5	5	3.6*2	4.5*2
condenser	type		finned copper tube + low noise outer rotor fan
fan information	air flow	m3/h	500	1000	1500	2000	3000	4000	5000	6000	8000	10000
	motor power	kw	0.12	0.15	0.15	0.15	0.19	0.36	0.36	0.36	0.5	1.1
evaporator	type		stainless steel coil
	oil flow	m3/h	1.08	1.8	2.3	3.6	5.4	7.1	9	10.4	14.3	18
	inlet & outlet	inch	1/2	1/2	1/2	1/2	3/4	1	1	1	1	1
oil pump	motor power	Kw	0.37	0.37	0.55	0.55	1.1	1.5	1.5	2.2	2.2	3
	max flow	m3/h	12	12	16	16	25	30	30	55	65	70
	max head	m	15	15	18	18	20	20	20	22	25	28
safety devices			inner thermostat for compressor motor, over-current, high and low pressure switch, phase protection relay, freeze protection thermostat
dimension	length	mm	550	600	650	650	980	980	1120	1120	1300	1500
	width	mm	350	400	520	520	560	560	610	610	680	760
	height	mm	695	845	1015	1015	1320	1320	1390	1390	1530	1660
weight		kg	45	52	65	85	132	145	165	183	275	355
