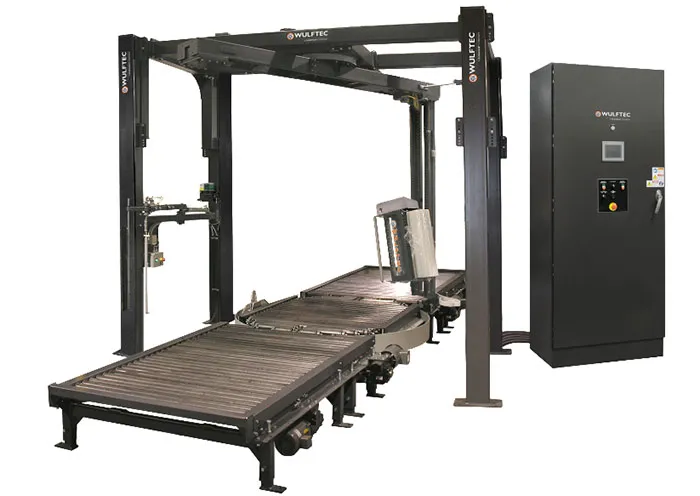

Automatic Rotary Arm Stretch wrapping machine WCAT-450

The CAT Automatic Rotary Arm Stretch wrapping machine (WCAT-450) model is an automatic rotary arm combined with a conveyorized turntable, the ideal stretch wrapping solution for high speed application. This versatile combo gives the possibility of switching operating modes: operation in only rotary arm mode, operation in only turntable mode or operation in combo arm turntable mode at 45 RPM. Expect to improve productivity, operator efficiency while reducing film and labour costs.

Features of Automatic Rotary Arm Stretch wrapping machine WCAT-450:

• IP66 CE Compliant control panel with heavy duty plug and socket connection to the machine

• The control panel is neatly organized eliminating time otherwise lost searching for wires

• Superior Electrical/Electronic Design including Allen Bradley PLC, HMI and AC drives

• User friendly touch screen offers a simple yet effective way to adjust and maintain your equipment

• All motors, proximity sensors, photoeyes and other sensors have quick disconnect cables that simplify installation and maintenance

• All Wulftec structures are made of heavy-duty steel for rugged performance, even in the harshest work environments. They’re built to last forever

• 4-legged design for maximum stability at high speed

• A 635mm ring gear with pinion gear drive provides the strongest drive in the industry and is warranted for 10 years.

• Dual chain driven for balanced movement & no vibration

• Our heavy-duty conveyors are second to none in the industry

• The "Maintenance Free" spring loaded carriage gate equipped with spring loaded rollers, ensures optimal contact with the stretch film year after year, without involving maintenance

• Wulftec is the only manufacturer to offer a LIFETIME warranty on its pre-stretch rollers’ blue compound.

• Pre-set pre-stretch ratios are available from 50-300%

• The angled carriage with very low wrap possibility, the product is properly secured to the pallet, resulting in a pallet that is more stable for transport, and therefore less damage

• No film threading is required and a Lexan cover eliminates operator's ability to reach rollers when gate is closed

• The pneumatically operated cut and wipe-on system automatically cuts and wipes the film onto the load upon cycle end
  • A vertical roller positions the film over the clamp which grabs the film; this ensures longer heat wire life expectancy
  • Then the heat wire swings in and cuts the film
  • A timed impulse heat control, allows quick cool down so the heat wire becomes cold to the touch within 5 seconds

• A vertical roller positions the film over the clamp which grabs the film; this ensures longer heat wire life expectancy

• Then the heat wire swings in and cuts the film

• Wulftec's revolutionary drop away clamp ensures clean film release from the pallet load

• Benefit from our splash proof program with the top cover pause

• Non-Proprietary parts accessible on a local base

• The best warranties in the industry
  • 3-year unlimited cycle warranty
  • lifetime warranty on pre-stretch rollers
  • 10-years on the steel structure and ring gear
