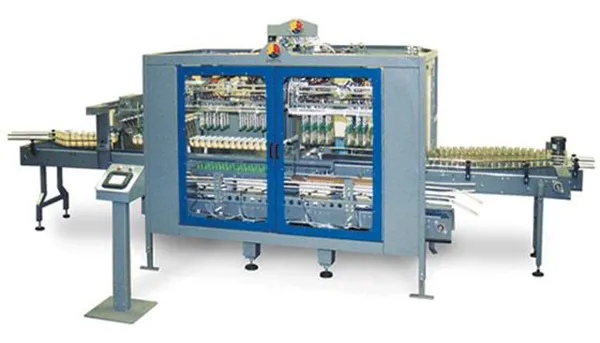

All-in-one packer and uncaser

All-in-one packer and uncaser

Here’s an easy upgrade if you’re using hand labor to pack and uncase bottles or jars. The Model 360 performs both functions, packing and unpacking, simultaneously, in one compact machine.

Operation is simple and effective:
Cases filled with empty containers feed to the uncasing station, meanwhile, pack-ready containers index on the packing conveyor. The transfer head lowers and lifts the empty containers from the case to the exit conveyor, and the empty case indexes to the packing area. When the transfer head reaches the conveyor, it picks up the filled containers and cycles them into the empty cases. On each subsequent cycle, empty containers are unpacked and filled containers are packed simultaneously.

Compact design saves floor space and offers easy installation
Run a variety of glass and plastic containers
No-drop handling protects container and label integrity

Features and Benefits

Compact design

Compact design This compact uncaser / case packer saves valuable floor space with its 2-in-1 design.

It utilizes 1/2 the floor space required for separate uncasers and case packers.

Reduce labor and increase efficiency

The Model 360 uncaser / case packer can replace both the manual uncasing and case packing labor, reducing costs while increasing productivity.

No-drop bottle handling reduces breakage

The bottles are maintained under complete control throughout handling. The gripper head gently lifts the bottles by gripping them gently and protect the container closure.

Bottles are not dropped, but lowered gently to the unloading conveyor during uncasing.

During case packing, bottles are lowered through a packing grid with fingers that ensure proper alignment with case cells, and lowered until the bottles reach the bottom of the case.

Case packer maintains highest container integrity

The packing head has multiple grippers that gently and firmly hold each bottle during uncasing and case packing.

Labels are protected during case packing by the shifting head that separates the bottles slightly prior to loading.

This action prevents the bottles from contact with other bottles, the case, or the partitions during case packing.

Specifications:

Electrical: Primary 460v, 60hz, 3ph, NEMA 12
Air: 7 scfm per case at 75 psi

High Performance Features:

Heavy gauge steel frame construction
SEW Eurodrive motor for main horizontal movement
Allen Bradley servo motor for vertical head movement
Intelligent control (PLC) of all machine functions
Simultaneous decasing and case packing with every cycle
Automatic case feed and indexing to uncasing and case packing stations
Color touchscreen control panel – allows manual operation of all functions
Variety of container handling options: pneumatic, vacuum or mechanical grippers, depending on product characteristics

Reduced Maintenance Features:
