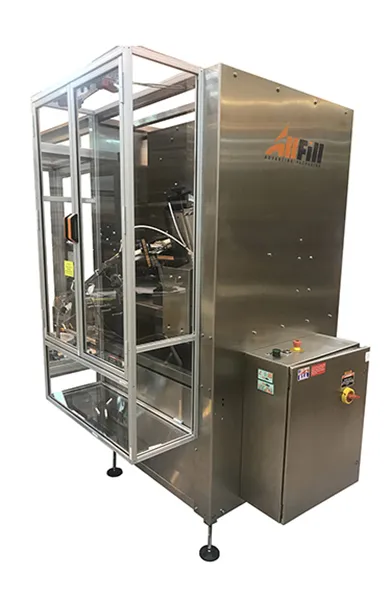

MODEL P UNSCRAMBLER

The Model P, formerly known as the Palace Packaging Compact Model, is ideal for operations with limited space or integrating with existing packaging lines. It's versatile, compact design feeds many shapes and sizes of bottles. It has the smallest footprint of any unscrambling machine with an internal bulk hopper. The Model P uses a starwheel for consistent and accurate container orienting. Containers are discharged onto a conveyor or directly into starwheels, pocket wheels or pucks. A low profile system features quick, easy and accurate changeovers with fewer changeover adjustments then traditional 'belt & hook' unscrambler designs. Auto-reversing disc pre-sorter and multi-purpose sensors make for a trouble free and technician free operation. Bottle contact parts are constructed of FDA approved materials, primarily stainless steel. The Model P is safe to operate, simple to maintain and easy to understand and install.

Specifications

Size Requirements         Suitable for containers up to 5.5" diameter or width wide and 9" tall

Production Rates             Speeds up to 120 per minute

Container Size Changeover         Tool-less changeover, reference scales standard

Machine Dimensions     As small as 43" x 40" footprint with bulk hopper

Controls               PLC and color touchscreen, discharge backlog sensor

Electrical Requirements               120 volt, Single Phase

Pneumatic Requirements            80-90 PSI

Construction      Stainless steel with acrylic access doors

Options                Ionized air rinse. Air rinse vacuum collection. Left- or right-hand bottle discharge direction. Class 100-autoclavable contact parts. Casters for portability. Stack light.
