LABELING MACHINES
LABELING MACHINES

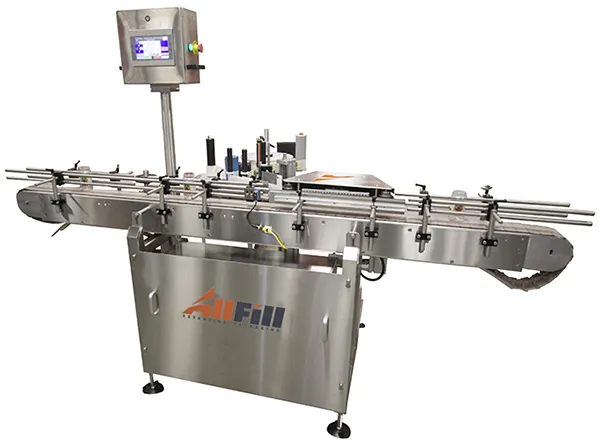

WRAP SERIES
The Wrap Series of Labelers is designed to apply pressure sensitive labels to rigid and round containers, and square bottles with rounded edges. All-Fill labeling equipment has a variety of options including semi-automatic and automatic machines, featuring touch panel controls for quick and easy changeovers. There are also economical Wrap Labelers that are designed for limited volume production lines or start-up operations. We reduce the need for change parts with an open frame design that features a fully adjustable and versatile machine.
All of our Wrap Labeling Systems are designed with ease of operation in mind. All adjustments to the label and label placement can be made on the fly, without interrupting the machine's operation. Label changeover and minor adjustments may be made without the use of tools.
Specifications
Label Sizes Up to 4" standard with options available for 6", 8" & 10", custom labeling heads up to 18”
Production Rates Variety of speed options available, Up to 300 ppm
Tool Size Changeover Tool-less changeover, change parts may be required to accommodate different containers
Machine Dimensions Conveyor based systems: 4 ft. wide by 6 ft. long. Table Top equipment: approximately 3 ft. wide by 2 ft. deep by 3 ft. tall
Roll Diameter Standard 12", options available for 16", 18" & 20"
Electrical 120 V Single Phase, Optional 220 Single or 3 Phase
Pneumatic When required 60 PSI, @ 3 SCFM
Standard Features Stepping motor drive with color touch panel controls for ease of set-up, 5ft. Long flat belt conveyor with fixed speed, A/C drive motor, Scaled head post for easy adjustment of applicator height
