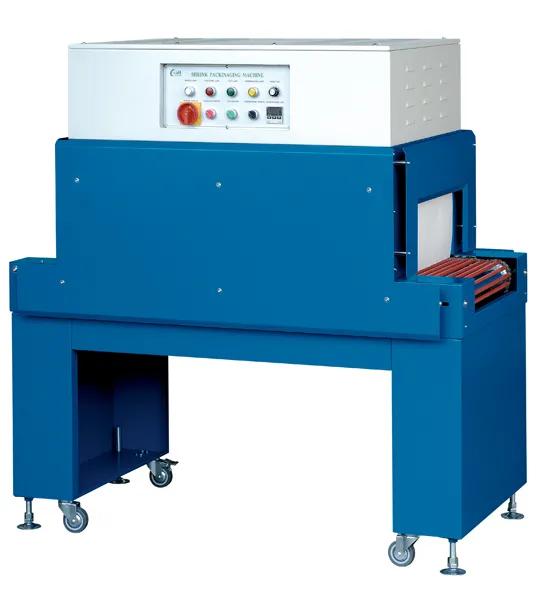

Heat Shrink Tunnel

Chuen An Machinery Industrial Co., Ltd. in TAIWAN has specialized in the manufacturing of packaging machinery what we provide heat shrink tunnel, desktop impulse sealer, shrink wrapping machines, case sealing machine, carton erectors, pallet wrapping machine, OEM service.

Chuen An provides the shrink tunnel with quickly and efficiently shrinks PVC, POF and PP shrink-wrap materials. Variable speed conveyor and separate temperature controls for upper and lower chambers.

Features:


• Full re-circulating air chamber
• Digital temperature control
• Adjustable air velocity control
• Different conveyor roller type depends on varies applications.
• Roller conveyor
• Teflon net conveyor
• Mesh net conveyor
• Variable conveyor speed
• Conveyor rollers with silicon sleeve for safety purpose
• Double entry and exit curtains for consistent temperature
• Automatic shut off after tunnel cool down
• Overheat compensator protection for electrical parts
• Dual heat insulation plate unable causes around temperature overheat

Specification:


• Power Supply: 3φ, 220V/380V
• Power Consumer: 9 KW
• Tunnel Size: L1000(L) x W450(W) x 200(H) mm
• Conveyor Speed: 2~10 M/min
• Conveyor Size: L1400 x W450x H760 mm
• Machine Size: L1600 xW760 x H1450 mm
