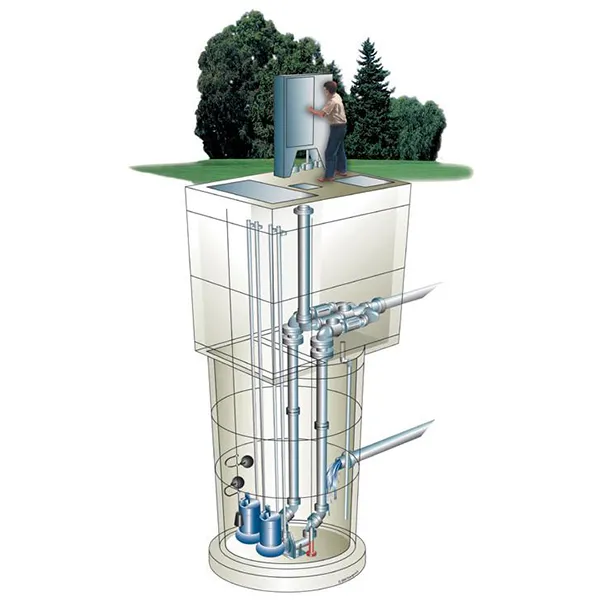

Integral Valve Vault Lift Station

Integral Valve Vault Lift Station

  • Custom UL rated control panel in outdoor rated stainless steel enclosure.

  • Assembly and testing in our Wisconsin shop.

  • Unique design of the transition section securely links the valve vault to eliminate settling issues.

  • Submersible pumps easily raised and lowered on stainless steel guide rails.

  • Submersible level transducer with float switch backup.

  • Proven reliability: Over 500 lift station applications.

  • Installed much like a manhole, the IVV is simply lowered into single excavation by the contractor.

Consulting engineers and city managers:

Please feel free to ask about our integral valve vault CAD drawings and complete design specifications for your use on a lift station project.
