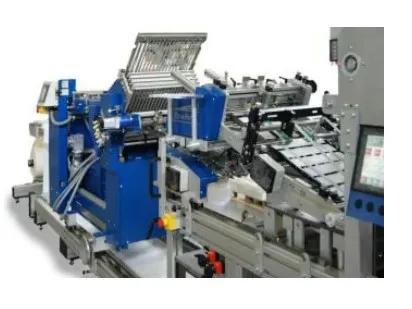

Fold and Fix Range

The Fold & Fix 2000 represents a revolution in leaflet label production. Folding in-line improves efficiency, reduces lead times and gives you control of the production process. With a 16½” (419mm) web width and the capability to handle ¾” (19mm) to 15″ (381mm) leaflet lengths at up to 100 feet per minute, it is a machine designed without compromise. And its multiple modes of operation mean that you can offer your customers a leaflet label solution without compromise too.

Features:

• Leaflet folding and placement in a single pass
• Optional pile feeder for pre-folded leaflets or booklets or other items
• Lamination or glue-only production modes
• High capacity low cost flat-bed die-cutting
• Intuitive touch screen control
• Single machine operator
• No restriction on pitch length
• Improved feeder capacity
• No frequent reloading required
• Job recall function
• Running speeds up to 100 feet / per minute (30 m/min)

Benefits:

• Folding unit enables inline folding of leaflets during the affixing process. This unit is on slide rails and therefore can be moved into position for normal affixing or parked out of the way when not in use.
• Leaflet label feeding system is a feeder conveyor unit for feeding pre-folded leaflets, booklets or other items onto the web for the production of leaflet labels.
• Conveyor/placement unit is a servo-controlled segregation conveyor for accurate placement at any repeat length. The unit has two placement positions: using lamination roller or unique castellated tamper roller for glue only manufacture.
• Adjustable pre-curve roller
• Hot melt glue and steering unit fully programmable for discrete solid or dashed transverse glue lines or 100% surface coating. Optional inkjet for index marks on unprinted web.
• Lamination with web tracking configured to laydown pressure sensitive laminate with an optional silencer for self-wound (backing-free) laminates. A web tracking sensor and servo controlled side adjustment enables pre-printed laminates to be laid down in register.
• FFI proprietary rolling segment die-cutter is a flat-bed servo-driven unit enabling inline die-cutting of leaflets and booklets post application.
