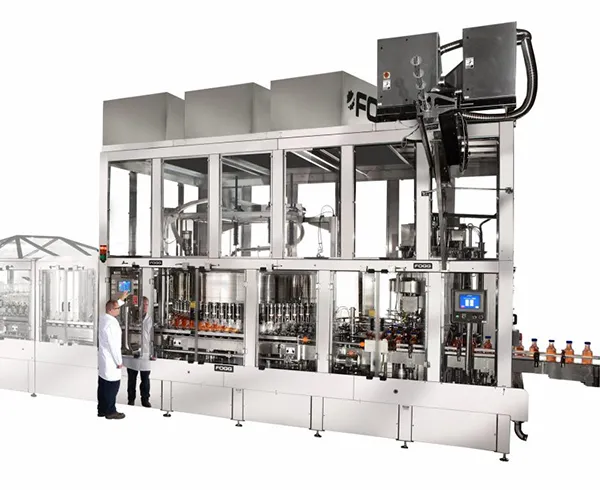

F9 Series filling machines

F9 Series filling machines

The F9 Series filling machines are the second-largest Fogg offers. The automatic filling machine has a 9-foot diameter filling bowl. These versatile filling machines can run at speeds of up to 800 BMP on anything in between single-serve bottles and 5-liter containers.

• Semi-Automatic One-Way Recovery Trough
• This series can be coupled with a rinser(s) and capper, or stand-alone
• Sanibar® System
• Gear drive system with no lubrication required
• All filling machinery has a highly polished stainless steel construction
• Forged ring bowl
• Acculift® system
• Optional HEPA Enclosures and Microb-Blaster®

STANDARD FEATURES

• Bowl Low-Level Alarm
• Digital Speed Rate Meter
• ESL SaniBar® System
• Pedestal Back Support
• Sloped base
• and many more features!

F9 FILLER DETAILS

• FILLING VALVES
  Up to 90 filling valves
• CAPPING HEAD
  Up to 30 capping heads
• CONTAINER SIZE
  50 ml to 5 liter
• BOWL DIAMETER
  9 feet
• RINSER
  Pairs well with a FR8.1 Rinser, single or dual turret
