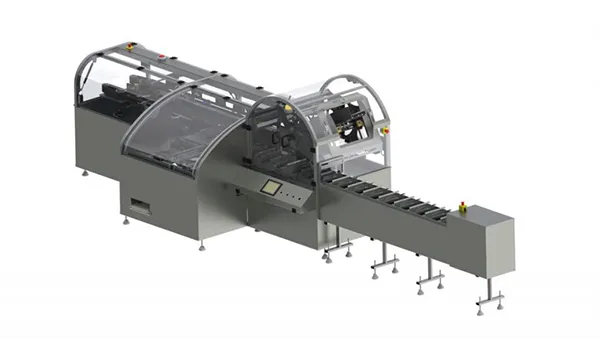

NS-X 5 Automatic Cartoning Machine
NS-X 5 Automatic Cartoning Machine
Bottom of Form
The NS-X 5 automatic cartoner erects cartons by means of vacuum pick off from a magazine; the carton is automatically picked by detection of the product within the product bucket and places the carton into continuously moving flighted chains. The product can be placed either automatically or manually into the product bucket, the carton is erected and placed into the continuously moving flight chains, the flaps are then formed on the non-loading side and folded open on the loading side, the product buckets slide over to the opened carton at the point of loading thereby allowing for close and controlled loading of the product.
The machine is fitted with a no carton no product reject unit which discards the product outside the guard line of the machine. After product loading, glue is applied to the bottom minor flaps, the top and bottom flaps are then brought together automatically to ensure a fully closed and sealed carton. Powered side belts discharge the cartons from the machine.
Features:
Main Frame / Shafts and guides constructed from Stainless Steel for all environments
Extensive, variable speed range subject to size and board quality
All change over points fitted with quick release and digital readouts for quick and easy carton size change, carton size change from 5 minutes.
No Cartoner Change parts required, Product Pusher faces at time of order included in cost
NS-X 5 is PLC Controlled, HMI allows program changes with machine running
Built in the UK to CE Requirements
Optional Extras
Product transfer Systems, comprehensive range for all product types available
Coding (Emboss / Ink /laser)
Open Flap detection / rejection
3 or 4 arm rotary
Closure Cold, Glue / Tuck type carton
Automatic carton magazine feeder
Special electrical requirements
Technical Data
OutputVariable dependent on carton and product.
Carton ClosureHot melt adhesive, jet glue application
