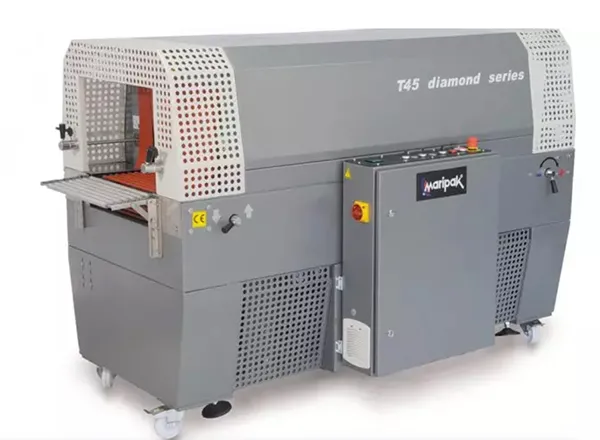

Diamond Heat Tunnels

Features

• Increased thermal insulation with double-layer insulation chamber
• Heat chamber and fan system embedded in the lower chamber
• Perfect heat distribution with adjustable flaps and channels
• Ability to adjust heat treatment time with conveyor speed control
• Ability to instantly switch to PE-POF with chain lift system (for T45 & T60)
• Automatic cooling up to 70ºC before shutdown after use
• Compatible with all packaging machine models
• Easily transportable body with braked wheels
• PID controlled heat management
• Air flow management with circulation fan speed control
• Long-life tubular covered tunnel shafts
• Color: Metallic Dark Gray (RAL Code: Special Mixture)

Optional

• Alternative conveyor options: Wire Mesh, Teflon Mesh, Plastic Mesh
• High interior cabinet designs available (H250, H400, H600 etc.)
• Tunnel exit side press ironing rollers for PE shrink applications
• Tunnel exit cooling fans for PE shrink applications
• Hood flues for special applications
• Stainless chassis versions for humid/wet working environments
• Memorable settings with PLC and Touch Screen plug-in

Safety and Security

• A safe protection is applied with casing sheets at the entrances and exits of the tunnels operating in a high temperature environment.
• Conveyor system automatically stops and secures in case of jam
• If the tape or the fan stops against the risk of heat and fire, the heaters are automatically disabled.
• The tunnel fan is in a completely enclosed enclosure, there is no operator contact and no risk of danger
