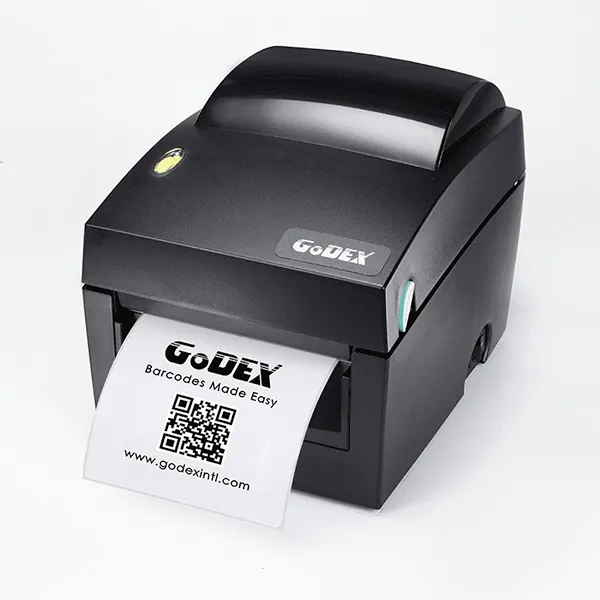

Thermal Printers GoDEX DT4x

GoDEX DT4x

Overview

The GoDEX DT2x and DT4x are both ultra-light, compact for best space utilization and support multiple communication ports; they are effective and multitasking for printing retail, warehouses, logistic & transportation, health care labels and tags.

• Simple and economical 2.5” direct thermal printer
• Small space-saving design with wall mounted feature
• Standard USB 2.0, serial port and Ethernet connections
• Auto language emulations: EZPL, GEPL and GZPL
• Free GoLabel / QLabel software with database function makes it easy to design
• Options include: label dispenser and cutter

Printer Specifications:

Print Method: Direct Thermal• Resolution: 203 dpi (8 dots/mm)• Print Speed: 7 IPS (177 mm/s)**• Print Width: 4.25” (108 mm)• Print Length: Min. 0.16” (4 mm)**; Max. 68” (1727 mm)• Processor: 32 bit RISC CPU• Memory: Flash: 8 MB Flash (4 MB for user storage) / SDRAM: 16MB• Sensor Type: Adjustable reflective sensor

• Fixed transmissive sensor, central aligned
• Printer Language: EZPL, GEPL, GZPL auto switch

Physical Characteristics:

• Height: 6.53” (166 mm)• Width: 6.61” (168 mm)• Length: 8.58” (218 mm)• Weight: 3.3 lbs (1.5 Kg) ,excluding consumables

Applications:

•  Healthcare
•  Retail
•  Manufacturing
•  Transportation & Logistics
•  Government
•  Travel & Leisure

Notes:

**Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.

Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type,thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height, and maximum print speed capability.
