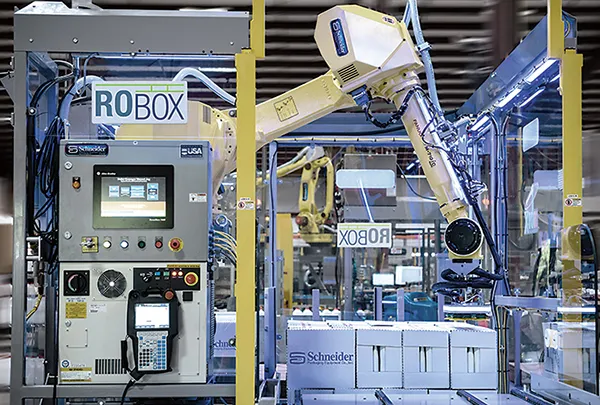

ROBOX FEATURES

MODULAR PALLETIZER (ROBOX)

ROBOX FEATURES

• Customized end-of-arm tooling (EOAT) specifically designed to handle your product(s).  ο Available multiple products per pick enables a high throughput.
• Locking guard doors.
• Zoned 24-volt product conveyor.  ο Available in perpendicular and in-line configurations
• Modular design allows many configurations.  ο 1-in-1-out with four configurations and provides options, such as sheet magazines and over/under conveyor  ο 1-in-2-out configuration has up to two-layer sheet magazines as options but does not offer the over/under conveyor
• OptiStak means no programming is required. The HMI is the only control necessary to set new pallet patterns or make adjustments for new products.
• Ships via pallets for easy placement.

SPECIFICATIONS

Product Types Cases

Pallet Types GMA, CHEP

Maximum Case Weight 50 lbs.

Unit Load Height 84"

Minimum Case Dimensions 6.5" x 4.5" x 3"

Maximum Case Dimensions 22" x 16" x 16"

End-Of-Arm Tooling (EOAT) Vacuum, Mechanical tool pending

Controller Rockwell Automation Compact Guard Logix

Power Requirements 480 Volt, 3 Phase, 60Hz, 50 Amps

Construction Standard: Painted, carbon steel

Visual Display Rockwell Automation panel PC

Dimensions (W x L x H) 106" x 90.5" x 116" 1-In-1-Out Short - floor load

133" x 90.5" x 116" 1-In-1-Out Extended - floor & over/under

106" x 139" x 116” 1-In-2-Out Double Short - floor load

133" x 139" x 139” 1-In-2-Out Double Extended - floor load

Safety Meets ANSI/PMMI B155.1 Safety Standards
