MOD.TP ROT20 US BOX

MOD.TP ROT20 US BOX

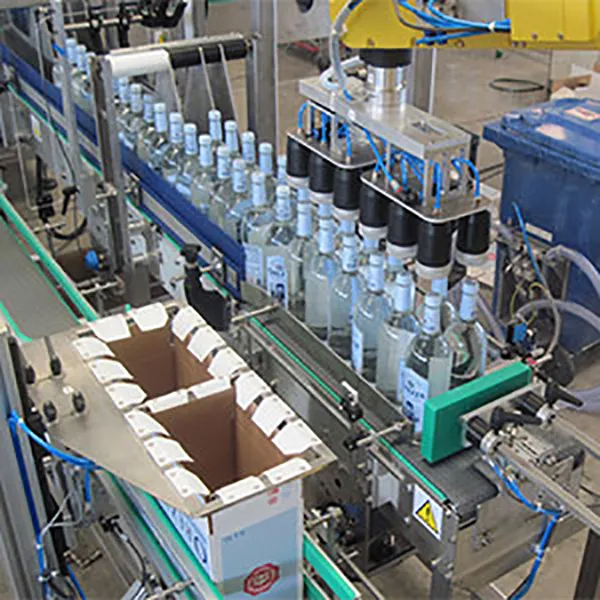

Automatic former machine for boxes like American box with robotic Pick & Place

DESCRIPTION

Compact and robust machine, with stainless steel frame structure and components suitable for working in aggressive environments, subject to frequent cleaning with corrosive products, in various sectors: food, beverage, cosmetics, chemical, etc.

Integrated, dynamic, constant-pressure carton magazine with differentiated storage capacity according to the thickness and dimension of the carton, with automatic adjustment.

The robotic arm equipped with a high-tech vacuum system, picks up the carton from the magazine, opens it with a positive carton raiser, so that the formation of the American box is automatically carried out along the carton’s feeding axis.

According to the product, the configuration required, and infeed into the machine, the products are grouped / stacked through different devices: dynamic motorized table; overturning system; through smart-track; in accumulation on conveyor belt; in multi-row with dividers; etc…

Robotized Pick & Place module for top-load product insertion with customized picking head according to product specifications: with single or multiple head, suction device, pressure head, mechanical grip.

In the same module, two or more Robots can cooperate, according to the production speed, the number of lines to manage and the complexity of the configuration to settle.

Carton closure with high precision Hot Melt Guns glue system or with adhesive tape application.

Intralox motorized conveyors for fluid and dynamic feeding, at constant speed of the empty cartons and incoming productsand for full cartons outfeed machine.
