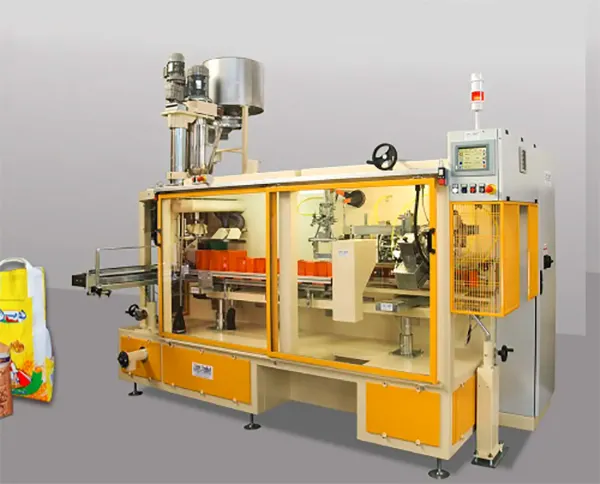

P42 PRE-MADE BAG FILLER

Why P42?

A fully automatic low cost packing concept for large production runs suitable for various product types: dry solids, pellets, flakes, powders, crystals, fibrous materials, slurries, or pastes. All of which can be bagged into 5kg - 50kg bags on the same machine at rates of 1000 bags/ Hour.

The bags are made from a roll of flat film which is continuously formed into a tube before being filled with the product - overlapping the back seal and making a 'one way' valve allows air to escape but prevents ingress of water or moisture.

Webster Griffin's unique technology means the De-aeration and special air evacuation systems provide a water & dust proof package which extends the shelf life of your product from 2 to 9 months (or significantly longer).

For maximum productivity FFS is best combined with a robot palletiser which can skip between different bag sizes and palletising patterns.

Benefits

Only one annual service required
Compact, modular system ensuring ease of installation and presents the capability to expand the system further
Requires low headroom
Simultaneous bag weighing and filling - the bag weight is constantly monitored during ensuring accuracy
Tightly packed stable bags
Automatic bag size adjustment
Clean operation
Patented “semi-suspension” solution for filling well shaped bags.
In-chute metal detection and product sampling
Corrosive resistant paint finish
Empty bag inflation fan
Mounted on integral four load cell weigh platform
Auto tare – deducts weight of bag and pellets giving only net weight of product in bag
Data output via label/ticket report printer

Ideal for Packing

Flour
Minerals
Cement
Sugar

Options

Vertical screw volumetric dosing system for granular, powdered and fine products
Single paper bags weakening device
Volumetric CUP dosing system for flowing granular products
Final electronic weight control
Automatic store for the empty paper bags
Air turbine for the vacuum
Final electronic weight control
Pressing system date application and lot number
Special rotary feeder for fine and powdered products
