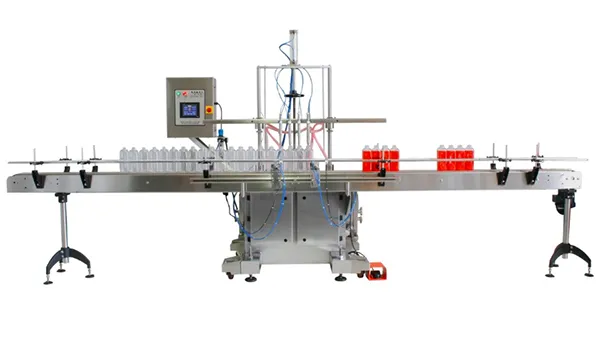

Gear Pump Filler - Model TruPump-8

Gear Pump Filler - Model TruPump-8

Main component features:

• Hardened stainless steel, calibrated shafts with linear bearings for nozzle rack movement smoothness and durability
• 12-inch stroke air cylinder with magnetic sensors for nozzle up anddown movement
• Hand wheel and shaft mounted stoppers for height and strokeadjustment

Control panel features:

• Individual volume adjustment for each pump
• Individual speed control adjustment for each pump
• Pumps on-off switch
• Individual or multiple prime pump option
• Omron 6-inch touch screen for machine functions
• Omron PLC for all machine logic functions, special modifications onprograms available for special adaptations
• Three filling options on control panel (up, bottom-up and down)
• Bottle counter
• Front panel start and emergency stop for easy access
• Fiber optic sensors for container gating
• No bottle-no fill, PLC controlled
• CIP (Clean in place)
• Recipe memory minimizes changeover times

Standard features:

• Nozzle spacing fully adjustable through top or bottom screw
• Container height adjustment from 0.5 to 16 inches
• Nozzle stroke adjustment from 0 to 8 inches
• Entry and exit bottle gating cylinders: adjustable sideways, up anddown, and inside and outside
• Will work with plastic or glass containers
• No change parts needed for various types of containers
• Air filter regulator and safety lockout valve included
• Spacing and additional bottle control obtained by flow controls mountedon air gating cylinders

Electric and pneumatic requirements:

• 220 Volts, 3 Phase, 60/50 Hz, 15 to 40 Amps (amperage depends on number of pumps)
• 20 CFM @ 80 p.s.i.
