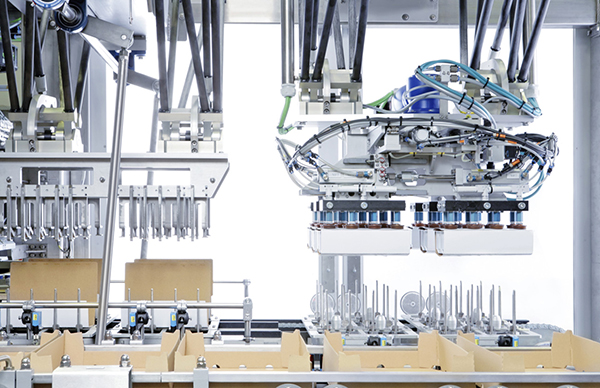

Cuffers

SetLine cup sealing system

Process single cups, cup sets or bottles of any size and shape very easily with the A + F SetLine. Would you like to connect the packaging system to your filling machine? In this way you create an integrated overall line that offers you maximum packaging flexibility and thus diverse cost advantages. Regardless of whether it is packaged in a tray, a crate or a full sleeve suitable for presentation - with A + F SetLine you can create exactly the packaging that your product needs.

Speaking of which: thanks to the modular system concept, you can adjust the cup sealing system to suit your specific applications, process individual products or sets in defined packaging formats - and optimize your processes cost-effectively thanks to short set-up and changeover times.

SetLine cup sealing system at a glance

Benefits

• The modular system concept allows the configuration to be adapted to customer-specific applications
• Line concepts with significant advantages in terms of overall efficiency
• The integration of several packaging steps in one system allows compact configurations with reduced space requirements
• The presentation cuff is filled and closed from above. This is associated with cost advantages through smaller cuff cuts and particularly stable, form-fitting cuffs for the optimal presentation of your products
• The SetLine allows the flexible processing of individual products or sets in defined pack formats - with short set-up / changeover times
• The high-quality, stable construction ensures a long service life with low maintenance requirements

Technical specifications

• Product:FS cups: 68 - 95 mmFFS cups: sets of 2, 4, 6, 8, single cupbottles: 40 - 60 mm
• Output:FS cups: 40,000 cups / hFFS cups: 43,000 cups / hBottles: 30,000 bottles / h
• Number of layers:FS cups: 1- and 2- layersFFS cups: 1- and 2-layersBottles: 1-layer
• max.height:FS cup: 140 mmFFS cup: 140 mmbottles: 140 mm
• Cuff design:FS cup: full cuff / clipFFS cup: full cuffBottles: full cuff / head cuff
• Tray feeding / production:FS cups: Integrated or separateFFS cups: Integrated or separateBottles: Integrated or separate
• Control:FS cup: Schneider Electric / Allen BradleyFFS cup: Schneider Electric / Allen Bradleybottles: Schneider Electric / Allen Bradley

Applications

• Cuffing of cups and bottles into multi-packs
• Insertion of single cups and bottles in trays or perforated trays
• Insertion of multi-packs in trays
• Repacking of products
• Application of snap-on lids
• Container: Open trays, perforated trays and trays with lids

Options

• Wide range of options and special solutions to cover specific customer requirements
• Integration of the system in a central carton supply or the direct integration of erectors
• Additional requirements, for example the integration of labeling, inspection or reading systems, intelligent palletizing or other downstream devices can be taken into account
• Efficient processing of required formats with minimal changeover time thanks to variable configuration
