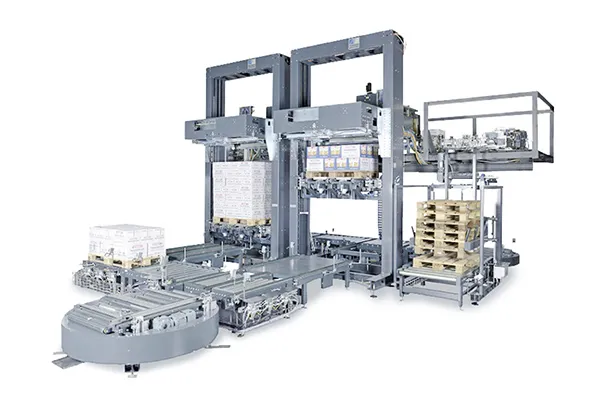

Sheet metal palletizer 350Q – 355Q

Sheet metal palletizer 350Q – 355Q

Benefit from a palletizing system that is absolutely tailored to your needs. Would you like to reduce maintenance costs and achieve high performance indicators? Then rely on high-performance A + F sheet metal palletizers, designed as a palletizing robot system or standard palletizing system - can be integrated into your production environment at any time and even with high weights, can handle up to 400 layers per hour. Thanks to the modular structure, it is suitable for every industry, designed for the parallel handling of up to four production lines and can be used as a system solution with any degree of integration. A + F sheet metal palletizers offer you maximum flexibility and are suitable for all variations of the product, interlayer and

Sheet metal palletizers 350Q / 355Q at a glance

Benefits

• Modular machine concept with extensive technical options
• Proven technology and many years of experience in a wide variety of industries
• Choice between conventional palletizers for high loads and performance levels of up to 400 layers / hour or robot palletizers for maximum flexibility
• Comprehensive solution including feed, empty pallet supply and full pallet transport
• Low maintenance costs thanks to high-quality, low-maintenance design
• Ergonomic design for optimal usability
• High quality design and durable technology

Technical specifications

• Number of axes:Robot palletizing: up to 6Standard palletizing: /
• Maximum payload:Robot palletizing: 450 kgStandard palletizing : 180 kg / pallet layer
• Performance:Robot palletizing: up to 5 depositing cycles / minuteStandard palletizing : up to 400 layers / hour
• Control:Robot palletizing: KUKA, ABBStandard palletizing: Siemens, Allen Bradley
• Lines:Robot palletizing: up to 4standard palletizing: up to 2
• Additionalhandling : Robot palletizing: intermediate layers, empty pallets Standard palletizing : intermediate layers

Applications

• Applications: palletizing
• Container: All cardboard packaging, trays, perforated trays, boxes and foil packs

Options

• Overall solution / logistical concept in-house
• Interface to systems for intelligent warehousing
