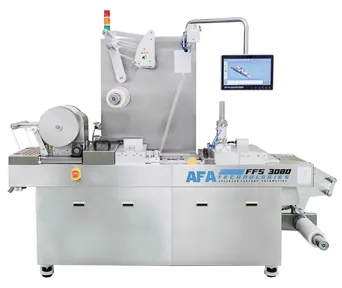

Thermo form fill seal Packaging Machine FFS 3080

Thermo form fill seal Packaging Machine FFS 3080


FFS 3080 Thermo-form-fill-seal-machine is a perfect solution for fully automatic packaging solution for food, medical, pharmaceutical products. It provides the hygiene in thermoform packaging with fully automatic operation, yet offering an economical solution for entry-level user into thermoform-packaging processes.


  • Compact automatic thermoforming

  • Quick and simple set up

  • Corrosion-resistant stainless steel structure

  • Optional labeler, Code Printer such as ink jet printer or thermal coder may be integrated

Technical Data

FFS SeriesFFS 3080

Top Packaging materialHeat sealable film, aluminum-laminated films, Tyvek or paper

Bottom Packaging materialThermo-formable, heat sealable films, flexible or rigid

Machine Length 2,500 to 5,500 mm

May be customized

Expected output

(cycles per minute)Air-lift: 8 to 12 cycles per minute

Servo-lift: up to 16 cycles per minute

Film width300 ~ 360mm

Index LengthUp to 320 mm

Drawing Depth Up to 100 mm

Film roll Diameterup to 420 mm as standard unless other requested

Film roll core3” core diameter (secured by Air Shaft)

PLC Control system/ HMI PLC control panel, PC based touch-screen with Network accessible sever

Compressed dried air (CDA) requirement

Minimum 6.0 bar, air consumption depends on “air-lift mechanism” or “servo-lift mechanism” configuration.

Servo-lift mechanism obviously reduces air consumption

Electrical SuppliesStandard 415V x 3 phase, 50Hz/60Hz, other voltages are to be specified at ordering

Vacuum consumption Usually comes with vacuum pump(s), unless otherwise specified

Chilled water supplyUsually comes with chilled water cooler, unless otherwise specified
