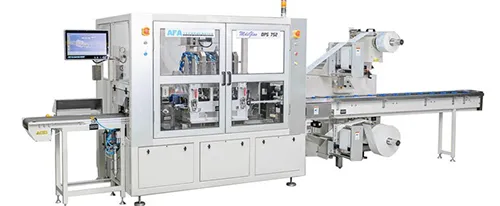

Outer Pouch Packing Machine OPS 752

Introduction

An OPS 752 is adopting platen seal method for good stability in sealing process prior to sterilization. It is suitable for medical products such as surgical glove, Sutures, Plasters, Gauzes etc.

It is fully servo-motor driven with the advanced servo synchronized system. It reduces down time and wastage; it has the flexibility of changing pouch dimension with simple tooling and conversion kits.

Features

• Continuous sealing process with eye mark registration.

• Machine designed by modular conception allowing easy integration to others device.

• Large touch screen with PLC system for easy operating.

• Material compatible with both flexible and rigid film.

• Can integrate with FMS 2010 machine.

Technical Data

OPS SERIESOPS 752

Machine Length5.2 m

Machine Width1.4 m

Pouch Lengthup to 300 mm

Pouch Widthup to 180 mm

Capacityup to 75 ppm

MaterialsBottom Film:

All kind of heat sealable materials and composite foils

Print Unprinted Clear film

Top Film:

Pre-printed film

Roll Sizeup to 600 mm diameter

Core Size76 mm diameter

Others

• QA System Empty Pouch detection

• Reel Shaft Air Shaft type

• Optional Code Printer; ink jet printer or thermal coder may be integrated

Machine UtilitiesElectrical source 3-phase, 415 V, 50/60 Hz

Operating Pressure5.5 bar / 81 psi
