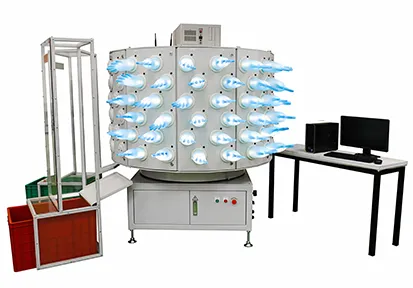

Glove Pinhole Detection & Sorting Machine LTM 120

Introduction

Designed to use for Natural Rubber and Nitrile Glove pinhole detection and sorting machine, and is adopting dry testing methodology by air pressure. This is nondestructive to glove.

LTM 120 have 120 test mandrel made by medical grade Teflon material with built in LED light, the mandrel can use for variant standard glove size from XS to XL and from 5.5 to 9.0.

LTM 120 adopt high precision digital pressure sensor up to 0.0001 psi.

Features

• All glove sizes do not need to change mandrel

• Easy loading for all types of glove (include beadles glove)

• High power LED for manual inspection for visual defects

• No Calibration Required

• High output

• Small footprint.

• Adjustable output up to 5400 pcs/hour

Technical Data

LTM SERIESLTM 120

Machine Length 1.52 meter (rotating unit only)

Machine width 1.52 meter (rotating unit only)

Bin station530 x 970 mm foot-print

Output Capacity 4,800~6000 gloves/hour

Glove SpecificationGlove types: Latex and Nitrile, Beaded or non-beaded & Exam and Surgical Glove

Glove sizes 5.5 to 9.0 and XS to XL

Other

• Sorting bins Good and Reject bins Retest Bin

• Bin (3rd bin) optional.

• LED Ease of manual inspection

• UPS (power backup) standard

• Invertors standard

• Control PC Industrial PC

• Monitor PC desk-top PC

Electrical Supplies230VAC / 100VAC Single-phase 5A x 50Hz or 60 Hz

Operating Pressure5.5 bar / 81psi
