Heat Sealing Machine C-Series

Heat Sealing Machine C-Series

Sealing Length

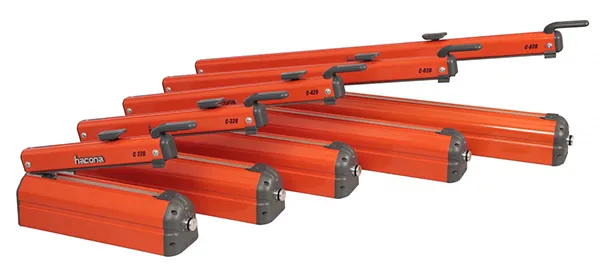

5 sealing bar sizes assure maximum flexibilityThe C – type impulse heat-sealing machines are produced in 5 different sealing bar length. This wide product range assures maximum flexibility to choose the right machine size for the right application. For small bag sizes the C – 220 impulse film sealing machine offers best place saving solution. If all kind of different bag sizes are used in packaging, then the C – 820 offers the most flexible solution, because all bag sizes can be sealed on one machine.Choose the right machine size referring to the biggest bag size used in packaging process.

All of the C – type impulse film sealing machines are working on impulse sealing principle. The sealing wire gets only hot when sealing bar is closed.General information: All film sealing machines, including the C – type are designed to seal also narrow packaging films with a wide sealing bar size!Example: With a C – 820 impulse film sealing machine it is possible to seal very narrow, even 50 mm (2 inches) or 100 mm (4 inches) wide packaging film. No mechanical adjustments are needed to work with 50 mm (2 inches) or even with the 820 mm (32 inches) packaging film.The sealable maximum material thickness (absolute material thickness) for all C – type impulse film sealing machines is:PE Polyethilene 200 micronPP Polypropylene 200 micronMulti layer - laminated film 100 micron(depending on the type of the lamination!)

With this revolutionary new sealing bar guiding funnel technology, we make the closing of the sealing bar safe and stable.

Thanks to the specially designed sealing bar closing handle with funnel guiding, even the longer sealing bars (C – 620 and C – 820) are guided in a smooth and safe way to the parallel closing position.

With this funnel we assure that the complete length of the sealing bar is always exactly above the sealing wire. The sealing bar handle and the funnel are made of ultra-strong plastic with fibre and technology.
