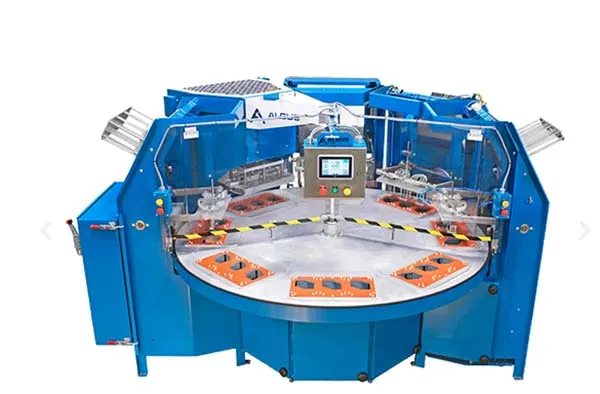

Universal 8 (U8) Packaging system
Universal 8 (U8) Packaging system
Description
The Universal 8 packaging systems (U8) was engineered to offer you maximum flexibility. Our unique modular design allows for multiple machine configurations, alterations and expansions based upon your unique needs and growth. Quick set-up maximizes production time. Our expert team offers the training and support needed to help guarantee your success. The U8 is the machine to take your company’s production to the next level.
Outside loading of blister(s), card(s) and finished package unload stations are all standard. Universal 8 packaging systems can produce all of the typical blister package including face seal, full face, double card trapped, Club style and mock-clamshell with proper seal tooling installed.
Conceived by industry pioneer Art Gustafson in response to a customer’s needs, the ergonomically sensitive Algus Universal 8 Station (U8) Packaging System was designed with your future success in mind. As your sales increase, the revolutionary U8 is designed to allow for in-plant reconfiguration to satisfy increased product demand and production requirements. This cost-effective system allows for different packaging formats, from simple face seal packs, to complex club store packs. With the flexibility to add feeders for inserting components and vision systems for quality assurance, the U8 offers “the sky is the limit” approach to packaging.
Features
Modular “plug and run” satellites
12” x 18.5” Sealing capacity
Transfer eject
Production rates from 16,000 to 96,000 packages per shift
5 – 23 cycles per minute
Emergency stop switches
Adjustable sealing pressure
Digital seal contact timer
Digital temperature control
Full PLC control with 8” touch panel
4 open product load stations
Casters for portability
Quick change tooling
Safety interlocked guards
Servo controlled turn-table
