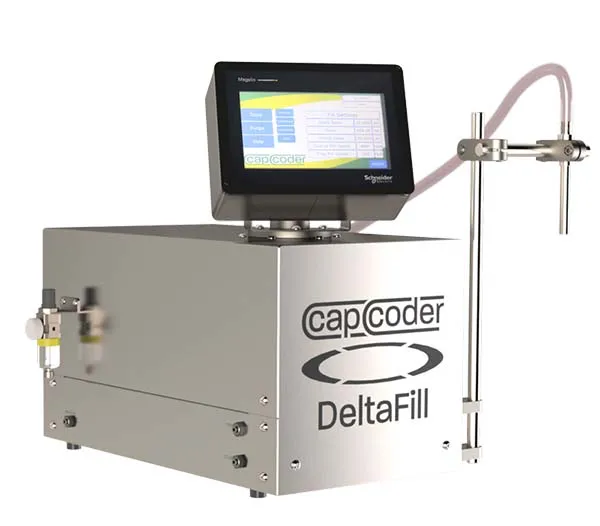

DeltaFill
DeltaFill
Servo-Controlled, Highly Accurate Gear or Peristaltic Filler
Multi-Position touchscreen.
Allows ramp up, ramp down and multiple speed filling to alleviate frothing products.
Can be fitted with any size gear head or a precision peristaltic head
- Open nozzle or positive shut off
Fitted with a pressure switch if using a positive shut off nozzle.
- One master unit can control up to four slave units
No need to buy four individual fillers.
Applications
- - Intelligent Calibration And Specific Gravity Offset
- - Continous Mode - Time Adjustable
- - CIP - Clean In Place
- - Multiple Recipe Storage To Save And Recall Individual Product Settings
Tech specs
The DeltaFill works on the principle of a volumetric filling machine but instead of the traditional method of selecting a set number of pulses to obtain the desired fill level, you simply enter into the HMI the target fill volume, eg. 120ml and the DeltaFill will calculate the number of pulses necessary for that volume.
To calibrate the filler, the operator only has to weigh/measure the dosed filled and input that figure into the calibration screen, press calibrate and the DeltaFill will automatically make the necessary offsets for an accurate fill.
The DeltaFill can work in one shot mode, where a dose is only dispensed after a signal, either from a footswitch or pressing the dose button on the HMI, or can work in continuous mode where it will then dose and then dose again after a pre-set time interval which is adjustable by the operator, eg every 1 second. A batch number can be set and the filler will count down and stop when this number is reached or instead a live view of the total number of bottles filled can be displayed.
The nozzle bracket can be installed on each of the four corners of the unit and the HMI can be adjusted up and down and rotated to any position making the DeltaFill functional in most orientations. A pneumatic shut-off nozzle can be supplied as an optional extra to help eliminate drips when filling thin liquids.
