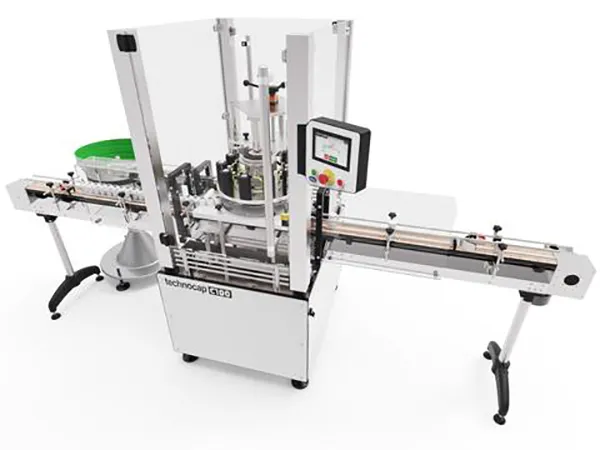

CS3030008A - King Technocap C100 - Fully Automatic Press Capping Machine

The new King Technocap C100 is a medium speed fully automatic continuous motion press capping machine designed to handle plastic and glass bottles (generally round, square or flask shape designs) with press caps.

Bottles are fed by conveyor to a turret star wheel mounted beneath continuous motion press capping heads. Caps are correctly orientated by a vibratory bowl feeder and fed to the turret starwheel. Vaccum chucks mounted on the capping heads descends and accurately grip the caps. The chuck then in motion places the press caps onto the bottles. the capped bottles then exit the machine. If the outfeed exit is blocked the back-up sensor stop the machine from capping bottles and no more capping will commence until exit is cleared.

Specification capping speed: up to 100 bottles per minute container range, ø25 to ø125 mm x height 45mm to 305 mm cap range, ø10mm to ø75 mm x height 7mm to 50 mm.
