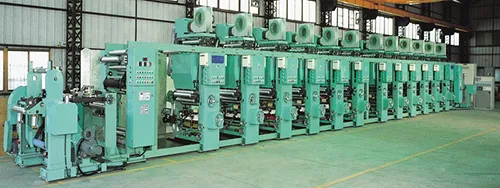

Standard Type Rotogravure Printing Press CCI-G736-S,SP

Standard Type Rotogravure Printing Press CCI-G736-S,SP



  • 8 colors rotogravure printing press



  • For flexible packaging materials

FEATURES:

● Each print unit: Supplied with ink mixing transferring squelching (furnish) roller

● Dryer design : High efficiency dryer design air nozzles made by stainless steel

● Rewinder: Provided with near roller system before rewind shaft for better rewind condition

● Equipped with human machine interface (HMI) for setting working parameters and monitoring operation and with alarm message for quick trouble shooting.

SPECIFICATIONS:

MODEL

 G-736-S

G-736- SP

Max print speed

 120 M/min

150 M/min

Driving System

By one main motor with transmission shaft

Materials to be handled

BOPP, PET,CPP, NYLON, PVC, PE, PAPER

Number of Colors



 2-12 Colors

Web width

 850mm, 1050mm, 1250mm, 1550 mm

Print repeat

 380mm-900 mm

Materials reel dia.

 ∮600mm, ∮800 mm
