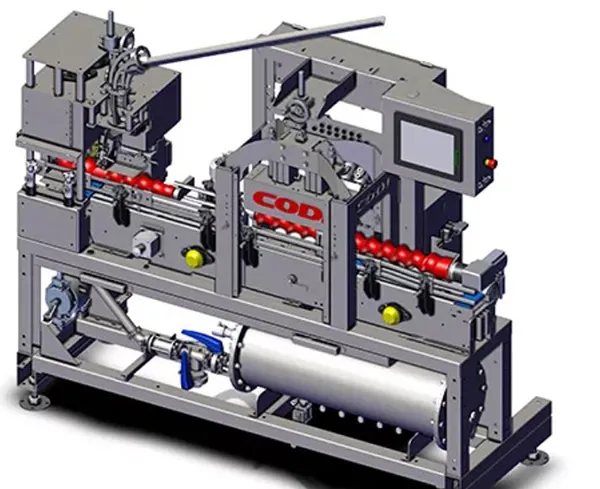

COUNTER PRESSURE FILLING MACHINES

COUNTER PRESSURE FILLING MACHINES

REDUCE PRODUCT LOSS AND OXYGEN PICKUP DURING PACKAGING WITH COUNTER PRESSURE FILLING TECHNOLOGY

FEATURES

• Lowest Dissolved Oxygen pickup in the micro canning industry.
• Can beverages under a wider range of temperatures and carbonation levels with Counter Pressure technology.
• TACT style cleaning compatible​:

Temperature​: Brewery hose rated for high pressure and temperature(up to 180°F/82°C) with Tri-Clover sanitary fittings.

Action/Flow Rate: Cleaning solution is recirculated to achieve high flow rates and conserve resources.

Chemicals: 304 stainless steal constructions can withstand caustic chemicals.

Time: PLC controlled to set the desired cleaning time.

• HMI provides full control over fill rates, pressure, and snift rates.
• Built in buffer tank pressurizes liquid with CO2 prior to filling effectively keeping CO2 in solution.
• Post fill to seam foam management with controlled pressure release.
• CO2 monitoring throughout the fill process.
• Audible and visual alerts when the system is compromised.
• Cam driven seaming operations for consistent seals every time.
• Integrated sensors for monitoring stacked lids and lid drop.
