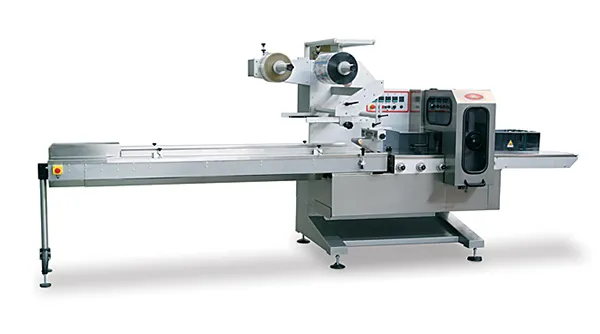

EAGLE 60 SERVO

EAGLE 60 SERVO

Machine with total electronic management, of new conception and technologically advanced construction with high reliability according to the new criteria and needs of the sector, suitable both for manual loading but especially for automatic loading (large production lines). Compact and versatile machine with continuous movement suitable for the packaging of small-medium-large, food and non-food products, at high production speeds.

STANDARD EQUIPMENT

- Main structure in anticorodal aluminum and painted steel.
- Worktops, guards, guards and covers under the belt in AISI 304 stainless steel.
- Infeed belt length approx. 2000 mm.
- Fixed or adjustable conformer.
- Cantilevered reel unwinding unit with expansion reel holder.
- Centering on the conformator axis by means of a graduated index.
- One sector rotary sew-cutter, width 300 mm, Diam. 200 mm.
- Cut-Sew with welding center on product center line, adjustable by means of a graduated reference index.
- Torque limiter on the overlock, with reset handwheel.
- Worktops in contact with the product in AISI 304 stainless steel.
- Three pairs of wheels, towing, preheating and longitudinal welding diam. 100 mm.
- Pneumatic opening of the wheels.
- Wheel movement controlled by a BRUSHLESS motor.
- Cut-sew rotation controlled by a BRUSHLESS motor.
- Feed belt advancement controlled by a BRUSHLESS motor.
- Total machine functions adjustable from Touch Screen.
- Bag length adjustable via Touch Screen.
- High precision digital temperature control thermoregulators adjustable via Touch Screen.
- Machine speed adjustable via Touch Screen.
- Machine timing adjustable via Touch Screen.
- Output belt length 1000 mm.
- Fully cantilevered mechanics configuration.
- Machine built and compliant with the "CE" machinery directive in force.

OPTIONAL ON REQUEST

- Rotary date printer.
- Cut-and-sew with additional sectors.
- Feed belt extension.
- Multi-pitch arrangement on the feeding belt.
- Anti-mold dispenser.
- Polypropylene roller shutter belt.
- Zigzag cut knives.
- FULL-INOX construction variant.
- Right or left operating version.
- Motorized unwinder.
- Additional reel holder.
- Gusseted packaging.
