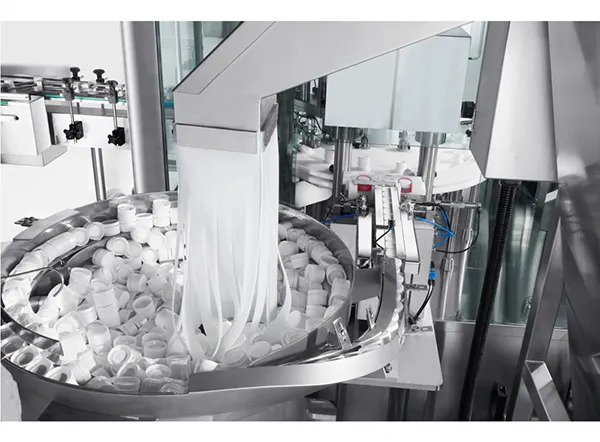

Chuck Capper

Chuck Capper

CVC 3034-2

The compact-designed CVC 3034-2 Chuck Capping System provides excellent capping performance with maximum output of 60 BPM(bottles per min.). The machine is great to integrate with a variety of bottle packaging lines.

CVC Servo Chuck Capping System is available for the following types of capping applications:

Plastic Screw-on caps
Snap-on caps
Aluminum ROPP caps
Push-in stoppers, and plugs
Pumps and triggers

STANDARD FEATURES

Production Output is up to 60 bottles per min. (Actual output will be depending on customer's and caps. Our factory evaluation is required.)
2 Servo Driven Capping Heads.
Table top design features ease of machine cleanup and operator's access.
Stainless steel construction, meeting GMP regulations.
Servo motor driven system is applied for consistent torque application.
Siemens PLC and 7” Touch Screen Panel HMI.
Up to 50 Recipes which allow operator to perform quick storage and recall of counting job memory.
Main Drive System is servo motor driven.
Capping head up/down and rotation are driven by advanced servo motors, which feature precise capping control.
Capping torque inspection system.
CE standard PC safety guard.
Type 304 stainless steel bin, frame, enclosure panels.
ISO 9001 : 2015 certified.

TECHNICAL SPECIFICATIONS

Low maintenance cost and time:
With the use of servo main drive system, the CVC rotary capper requires only minimal maintenance.

AVAILABLE OPTIONS

21CFR Part 11 compliance
OPC UA for data collection
Cap Prefeeder (Cap Stock Elevator/Hopper)
Fallen bottle detection
Bottle & cap detection system is used for foil liner and crooked caps detection.
Rejection system is in conjunction with verification devices to removing unqualified containers: cocked caps, missing foil liners, low capping torque level (if capping torque is lower than set torque)
Rejection verification check
Bottle format changeover parts
Cap format changeover parts
Type 316L stainless steel contact parts.
