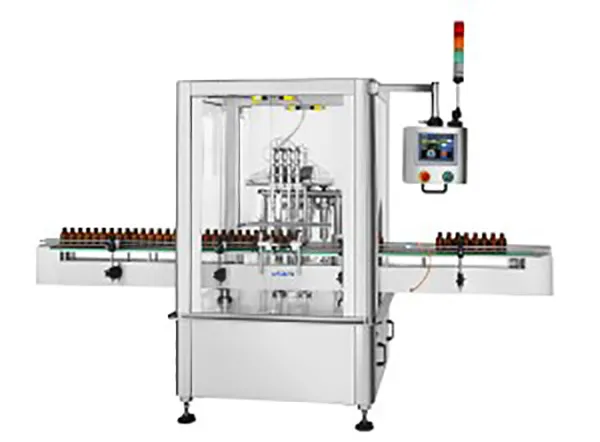

Liquid Filler and Capper

Liquid Filler and Capper

CVC 3036-4

CVC 3036-4 with in-line configuration are really versatile fillers that easily - and inexpensively - accommodates to different bottle sizes.

STANDARD FEATURES

• Diving type filling mechanism: filling nozzles dip into bottles and move up while liquid is being filled. It features less foaming during filling.
• 4 filling stations.
• Servo driven on both volumetric pistons and nozzles.
• Flexible adjustments can meet different product characteristics and bottle shapes.
• Various speed settings of liquid filling.
• Drip tray.
• Capability of recipe storage.
• Simple and quick tech mode setup.
• Track full / track empty sensors.
• Bottle mouth holder design for special applications (require to conduct our factory test).
• PLC control with user-friendly operation.
• Motorized single lane sanitary conveyor. customized conveyor lengths are available upon request.
• Type 304 stainless steel & Type 316L stainless steel construction meets cGMP requirements..

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

• Include various sizes of volumetric pistons with fill volume capacity range from 20 ml up to 500 ml
• Shut-off nozzles
• 1-on-4 manifold pipe
• Liquid buffer/storage tanks
• 21 CFR PART 11 compliance
• OPC UA for data collection
• Bottle neck holders
• Bottle feed screw
• Bottle feed screw for handling irregular shaped containers
