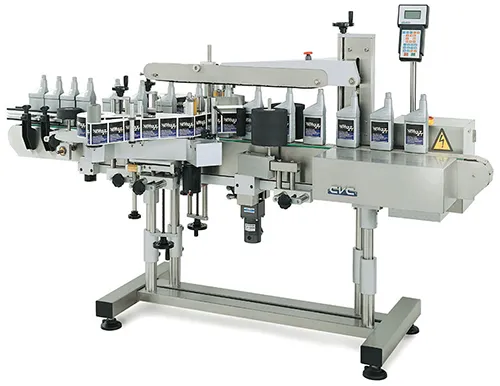

CVC400 Front & Back Labeler

Model CVC400, Front/Back Labeler

The CVC400 Front & Back Labeler is built to automatically apply pressure sensitive labels onto the front and/or back of flat sided, oval, and some round containers. The 400 can be ordered with one or two labeling heads and has an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. The 400 is an ideal machine for contract packagers and manufacturers serving the food, nutraceutical, pharmaceutical, gas, oil, and personal care markets.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

Standard Features

• Self Set Auto Adjusting Control System

• Stainless Steel Frame on lockable casters

• Stainless Steel flat bed conveyor with 3-1/4" wide table top chain (Raised Sanitary Bed also Available)

• 25-Key Hand Held Terminal with LCD Display

• Label head with up to ± 1/32" accuracy and Integrated Wrap Station

• Label Sensor for Paper or Opaque Labels (Clear Label Sensor available as Option)

• Product Sensor with Opaque and Clear Bottle Mode

• Variable Speed Separator Wheel

• Capacity: up to 220 bottles per minute (BPM)

• ISO 9001:2000 Certified
