Top Bottom Side Labeler

TopBottomSide Labeler

CVC 200

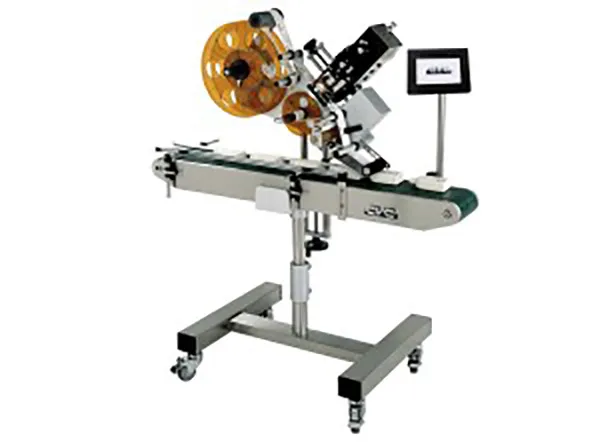

The CVC 200 Top Labeler is built to automatically apply pressure sensitive labels onto the top or side of flat and indented containers. The 200 comes standard with a 6” wide belt conveyor and is ideal for contract packagers and manufacturers serving the nutraceutical, food, cosmetic, personal care, and consumer electronic markets.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

STANDARD FEATURES

• Self-Set Auto Adjusting Control System
• Stainless Steel Frame on lockable casters
• Stainless Steel flatbed conveyor, 6” wide endless green belt
• Touchscreen HMI
• Label head with up to ± 1/32” accuracy (* bottles / containers dependent)
• Label Sensor for Paper or Opaque Labels
• Capacity: up to 200 bottles per minute (BPM)

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

• Hot Stamp (Lot/Date Coding)
• Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
• Clear, Metallic or Color Label Sensor
• Dataflex or similar Lot/Date Code Printer
• End to End transfer plates
• Infeed and Outfeed Conveyor Extensions
• Separator wheel for controlled spacing
