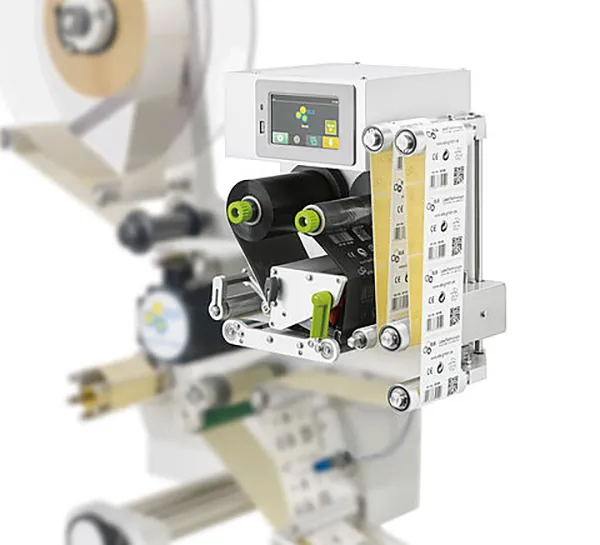

ELS 193 thermal transfer printing system

The thermal / thermal transfer printing system guarantees a high-quality print image and can be used flexibly for printing texts, barcodes, graphics, best-before dates, prices, etc.

• Printing system mounted directly on the labeling station
• Resolution 300 dpi
• Touchscreen LCD color display, 4.3 "
• Font sizes from 1 mm to 128 mm; Vector and bitmap fonts
• Support of all Western and Eastern European special characters
• all common barcodes
• Real-time clock for printing the date / time
• Transmitted light / reflex sensor for automatic adjustment to the length of the label
• SD and USB slot for layout storage
• Automatic transfer ribbon saving - carbon ribbon optimization
• Interfaces: Serial RS232C, USB 2.0 slave, Ethernet 10/100 Base T, 2xUSB master for optional keyboard and scanner, 1xUSB master on the control panel, optional: WLAN and / or Bluetooth
• Print width: up to 108.4 mm
• Printing speed: up to 300 mm / sec. (Dependent on carbon ribbon)
