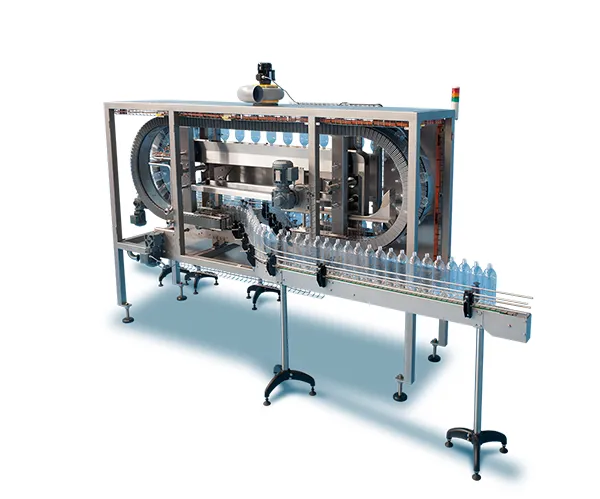

Linear bottle rinser

Linear bottle rinser

Filmatic’s new inline Inverter Rinser can be installed in any existing packaging line, reaching speeds of up to 300 BPM (Bottles per Minute). The inverter functionality automatically inverts the bottle to enable rinsing, i.e. the bottle enters on its base, are inverted and then turned back onto its base for transfer to the filling machine.

There are no change parts involved, as the belt driving the bottles through the rinser caters for various lengths of bottles and an adjustment handle easily adjusts the width of the belt for different bottle diameters. As a result, changeover times are very quick.

The rinsing system can connect to any water supply or water sterilizing unit which makes integration into the existing water processing lines possible. Underneath the rinsing nozzles, a water collection tray, i.e. drip tray, enables the water to be recycled which also results in a big cost saving on running expenses.

The machine was designed as a low cost machine, not only saving on acquisition costs, but also saving on running costs. The machine is fully enclosed with safety guards and safety sensors complying with international safety standards.
