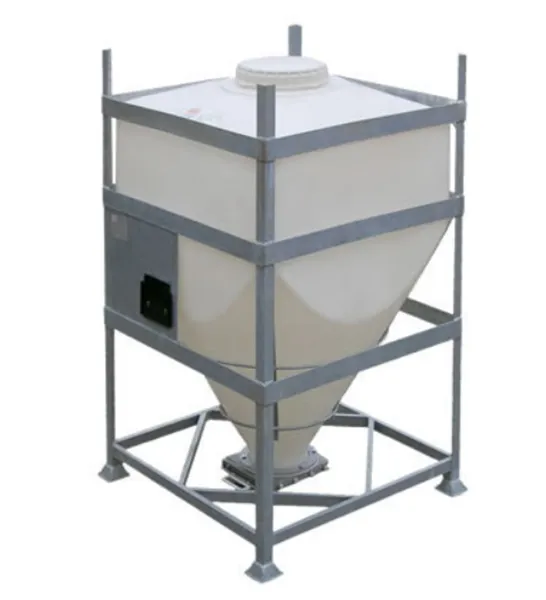

DGC 60

The DGC is a reusable silo IBC designed for the transportation and storage of dry goods e.g. powders and granules.

The DGC liner is rotationally moulded in natural UV stabilised linear medium density polyethylene. The polymer has strong resistance to industrial wear and tear. The conical base has a 60°cone angle which is designed to provide total discharge of the contents. The liner is supported and protected by a galvanised mild steel frame, providing excellent resistance to the elements. The base of the frame has integral four way fork truck entry.

The liner inlet, which is 350mm in diameter, has a PP³ screw cap fitted with an EPDM² O-ring seal as standard. The vertical outlet at the base of the liner can be specified with a slide valve or iris valve to suit individual applications.

Reusable IBC's for dry goods.

• Robust welded and galvanised steel frames.
• Replaceable rotationally moulded seamless plastic liner.
• Optional top inlets and bottom outlets.
• Liner cone outlets of 60°, 90° and 120°.
• Capacities from 500 – 2250 litres.

DGC's are manufactured to provide users with tough long lasting dry goods containment and transportation capabilities. Frames last many years and the liners can be replaced when necessary. The cone angle on the liner can be selected to meet the flow requirements of the dry goods contents. We can advise on liner service life performance with a wide range of contents based on our extensive product performance database.
