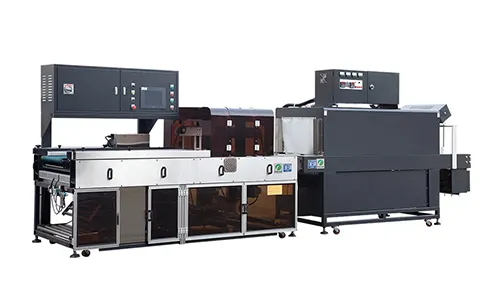

Automatic Tray Shrinker (Overlap) - FYT-501

Features of Automatic Tray Shrinker (Overlap):

• FYT-501 series are our newly developed models that meet the newest over-lap packaging systems adopted by the industries in the world. High speed, Nice packing, functional, simple maintenance, easy operation and manpower saving.

• Packing material is LDPE shrink film. Both transparent and printed shrink film can be used.

• Single film packing is overlapped at the bottom of the products; there are no heat seals on the packages.

• Multi-Axis of PC base programming control by color touch screen operation. Within specified range (L x W x H) for different products is completely simple for size-change on the screen.

• Each action and workstation of machines can be displayed on the screen for view.

• Film is delivered by Servo motor, so the film length is easily controlled. Sucking conveyor is equipped.

• Two film cradles at single-spindle air pressure can be exchanged. Each set can bear 60~90kgs of film roll.

• Film-rolling mechanism is controlled by Servo motor. The packing in different heights can proceed at any time. Automatic trip device for breakdown and lip type conveyor are also equipped.

• The machine can match the interlocking control system of before/after production lines.

• The machine body is made of standard steel #SS41 with powder painted surface. Inner oven is made of SUS#304.

• Electric heating stainless steel tube is equipped with fin and installed with ceramic adapter wires at two ends, so temperature can be adjusted. ABM Mineral Wood board covers heat-reserving layer.

• Twin circulation fans are to ensure even heat distribution inside shrink oven. Heat wind direction is adjustable.

• The machine's structure is melted and formed with square SS41 steel pipes with powder painted surface.
