GPM Rotary Surge Tables

GPM ROTARY SURGE TABLES

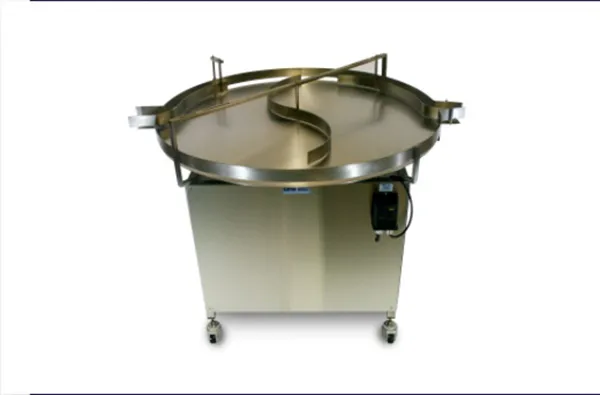

GPM Rotary Surge Tables are placed on packaging lines to allow bottles to both accumulate and feed, preventing back ups on packaging lines and allowing visual check points when needed. GPM Rotary Surge Tables come in sizes from 30” to 60”, and can be built to center feed with optional transfer plates (as photographed) or feed traditionally (side feed). GPM Rotary Surge Tables can be used with a wide range of bottle sizes and types, and can be customized for your exact needs.

https://gentilemachinery.com/wp-content/uploads/2017/09/GPM_RotarySurgeSpecs.pdf

Product Specifications

• Working Height: 36” +/- 2” (levelers included)
• Weight: Approximately 350 - 550lbs (varies with size)
• Table Diameter: 30”, 36”, 42”, 48”, and 60”
• Load Capacity: up to 600lbs
• Rotation Speeds: 0-8 rpm
• Power Requirements: 120 Volt, 15 Amp,
• Single Phase Speed Control: DART
• Motor: Dayton 1/4 HP

Available Options Rolling, Locking, Leveling Casters for Easy Mobility Stainless Steel Side Panels Custom Table Sizes Bottle Loading Trays
