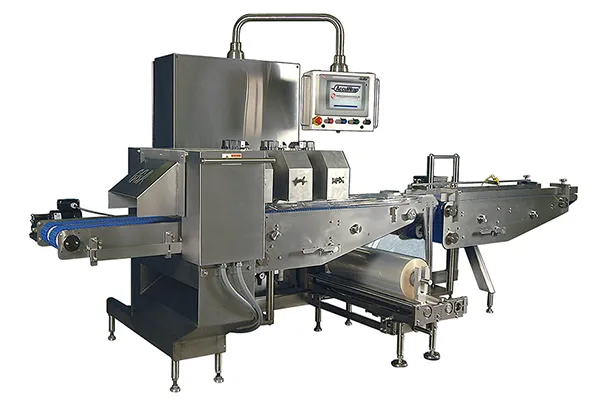

AccuWrap™ Hard Film, High-SpeedWash/Wipe down Inverted Horizontal WrapperFood Applications

Model: FG-2000H

Description

The AccuWrap FG-2000H is a multi-axis, servo-controlled, food-grade wrapper designed for high-speed, high-efficiency, and easy maintenance. The stainless-steel construction is designed to the “no particle trapping” criteria, allowing food particles to fall through, and accommodating wash down for all conveyors and wet wipe down of sealing sections.

The modular construction allows removal of all modules providing the maximum in accessibility, enabling an even more thorough spill clean up or for expedient changeover and versatility for future business requirements. Rails lift up; conveyor belts snap out; conveyors slide out; the former is fast change; and even the fin wheels are modular.



Featuring Allen-Bradley® controls for superior performance, the system provides independently adjustable servo control of linear fin sealing, main cross-sealing, rotary knife, and conveyors and unwind, all of which provide the ultimate in control for packaging production. Over 100 recipes for touch screen retrieval make product changeovers as easy as selecting your favorite TV channels. Product position monitoring for Out Of Position/No Cut and No Product/No Bag means more good packages ready to ship.

The modular design, wash down capability, and small footprint make the system ideal for food applications from pizza to food trays, individually wrapped jumbo cookies and many other food applications across the food packaging industries.

Building-Block Modularity™

The FG-2000H AccuWrap™ Wash/Wipe down Wrapper is designed and build utilizing GGA Packaging's Building-Block Modularity, which is the basic modular design philosophy of our packaging systems. It provides you with a machine that has value, both now and in the future.

Exclusive Features

• Building-Block Modularity™ for easy

Cleaning and plug-in application

Versatility

• Open construction for limited food

Particle trapping

• Advanced electronics for production

Compatible operation

• Full color touch screen for easy

Operator interface

• On-screen and remote diagnostics

To reduce downtime

• Servo-controlled for precision

Product placement

• Servo-controlled sealing head for

High accuracy seal placement

• Up to 400 cycles per minute for

High-speed packaging

• Small footprint for space efficiency

Additional Features

• Food grade, all stainless-steel

Construction for wash/wipe down

Cleaning

• Modular assemblies for expedient

Configuration change and plug-

In versatility

• Product position monitoring for

Out-of-Position/No Cut and No

Product/No Bag

• Allen-Bradley® control Logix

Standard

• Third-level multi-axis servo system

To optimize functions independently

• Machine Net open Ethernet network

For control, monitoring, and

Connectivity

• Full color touch screen for easy

Operator interface

• On-screen and remote system

Monitoring with diagnostics to

Reduce down time

• Single Powered, Overhead Unwind

For optimum film feed

• Standard film widths from 3 inches

To 16 inches for application versatility

• Modular forming box for easy

Changeover

• Two Fin Wheels with Independent

Servos for high seal integrity

• Inline fin pattern for reliable hard

Film sealing

• Modular crimp seal assembly for

Various package configurations

• Precision cut and seal with servo-

Controlled crimper for high accuracy

• Straight Cut Knife for clean

Cut separation

• Powered Seated Surface Unwind for

The ultimate in web control

Top of Page

Options

• Choice of crimper width from

6 inches to 16 inches

• Four choices of fin seal

• Registration for preprinted and

Opaque film materials

• UL Approval or CE Mark option

• Narrow web version available

• Servo-controlled 12” to 32” or

8” to 16” wide film

• 1- or 2-Up crimper

• Straight cut or Zigzag cut knife

• 1/8" wide straight line crimp pattern

• Inline or cross crimp pattern

• 1/8" wide straight line fin seal

pattern

• Inline, cross, or crosshatch

Fin seal pattern

• Adjustable 1 belt for narrow

web for 5'

• Adjustable 2 belt for wide

Web for 5'

• Saw tooth under fin feed

Chain option

• Conveyor section

• Flight spacing

• Single or double powered unwind

• Single or double powered unwind

Overhead (narrow only)

Technical Data

• Electrical: 230 VAC, three-phase,

50/60 Hz

• Current: Approximately 40 Amps

• Compressed Air: 1 cfm @ 80 PSIG

• Speed: up to 400 cycles per minute

(2,500 linear inches per minute)

• Basic footprint: 13’ x 5’
