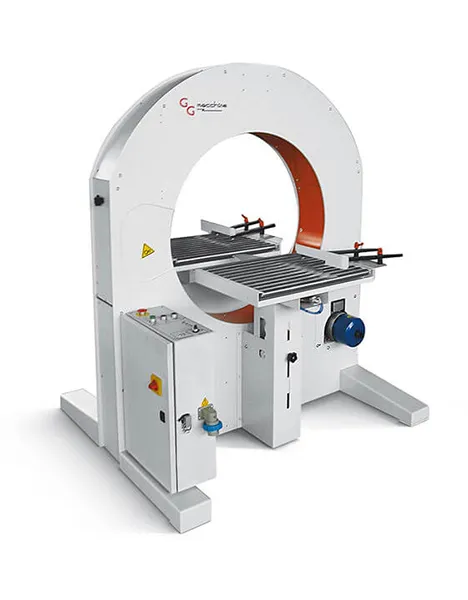

Semi-automatic horizontal wrapping machines for stretch film AT-S

Machines for band wrapping and wrapping by means of stretch film of products of various shapes and sizes.

It is possible to wrap everything, frames, doors, doors, furniture of all types, wooden beams and profiles of different materials up to large packs of stacked material: wood or metal panels, sandwiches for building, panels for insulation, etc.

The AT S series machines are equipped with idle roller conveyors (PVC coated on request), they are flexible and simple to use. Once the product has been positioned, the operator starts and controls the cycle with the pedal control. All the film winding, hooking and cutting operations take place automatically.

Built using the same structure as the AT A models, compared to the Semi-Automatic BOX series, they can use reels of stretch film with an external diameter of 250mm and a variable height from 50 mm up to 500 mm.

Technical features

• Rotating unit in steel with high load capacity with dragging on wheels;
• Reel holder and return roller unit with mechanically adjustable friction (constant film tension);
• Automatic film reel cut-off hooking and film reel positioning;
• N ° 3 turns of head and tail winding;
• Rotation speed electronically variable by means of a potentiometer;
• Std power supply voltage: 220V 50 Hz (others on request);
• Working air pressure: 6 bar;
• Continuous operation by foot pedal;
• Height-adjustable roller conveyors
