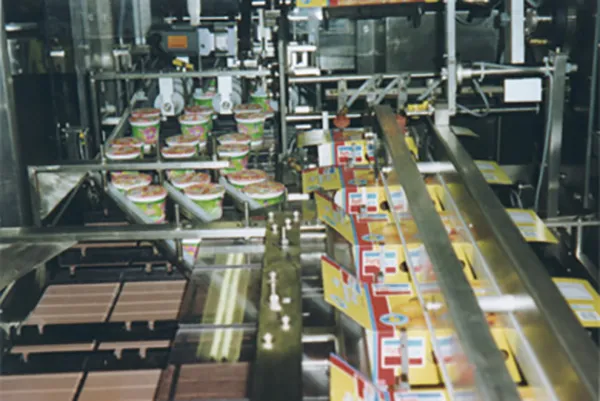

Model 120 Cartoning Machine
The Model 120 Automatic Cartoning Machine
Cartoner Rates
60 CPM operating speed
The model 120 cartoner has two distinct difference from the rest of the models that Global manufactures. The first is that this is a true wash down cartoner. The second is that this machine is designed to handle cup products without a barrel cam inserter.
Cups filled with product are timed from the infeed station into a cleated table-top conveyor. At the same time a photo-eye sends a signal to the PLC that in-turn signals the rotary placer to place one carton into the carton track lugs. The set of cups is now in alignment with the carton and is transferred by guide rails into open cartons. Minor flaps are tucked in and the lower major flaps are plowed up. The upper major flaps have hot melt glue applied to them and are then plowed down. After the carton is completely sealed, it is driven out of the track assembly and pushed into a set of discharge belts.
Machine Features
Machinery Options
