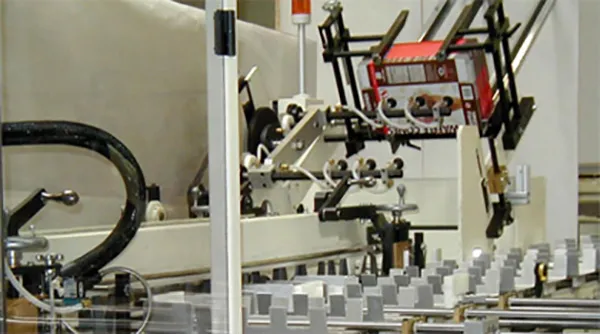

Model 140 Cartoning Machine

Model 140 Cartoning Machine

Cartoner Rates

Up to 240 CPM operating speed

The Model 140 feeds cartons from the magazine with a rotary carton placer. This placer fully erects cartons and places them in between transport lugs. Lugs in-turn, transport erected cartons to the product inserter.

The product is transferred from the infeed system into the bucket conveyor and is conveyed to the product inserter. The product is then inserted into an open carton with a barrel cam inserter. A two-gun hot melt system with assistance from plows, folders and compression belts provides full carton closure. A straight or reverse-tuck closure is also available.

The Model 140 is ideal for:

• Food & Bakery
• Consumer Products
• Personal Care & Cosmetics
• Automotive parts

Machine Features

• Continuous motion, left hand machine
• Painted open frame construction
• 12” depth inserter and carton tracks
• Three foot gravity carton magazine
• Rotary carton pick-off
• Inflight carton opening system
• Electrical 460 V/3 ph./60 Hz—controls 24 VAC
• Push button controls
• 3 HP motor with AC variable drive
• PLC controlled
• PLS used for timing
• Barrel cam inserter
• Product by-pass/reject chute
• Infeed product bucket conveyor
• Main drive line shaft
• Two-gun hot melt system
• Adjustable top guides
• Adjustable carton lug chains
• Adjustable carton depth track
• Timing belts and pulleys on all drive points
• Plows, folders, and compression belts

Machinery Options

• Emboss coder
• By-pass and reject conveyor
• Open flap detect/reject system
• Five foot powered carton magazine
• Annunciator panel
• Powered depth adjustment
• PC generated touch screen
• Washdown frame and electrical
• Four-gun system
• Straight or reverse tuck closure
